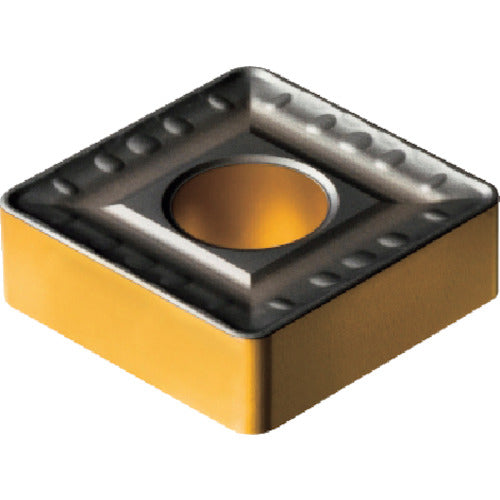

Sandvik T-Max P turning negative insert (112) 4425 SNMM 25 09 32-HR 10 pieces

Catalog number: SNMM 25 09 32-HR Features: ● Suitable for most steel turning applications. ● New base material combines resistance to plastic deformation with good toughness for improved reliability. Increasing the cobalt content towards the surface improves stability. Applications: ● For turning steel applications. ● For rough to finish applications. Specifications: ● Suitable workpiece material: PK ● Chip shape: Square ● Effective cutting edge length LE (mm): 22.2 ● Inscribed circle IC (mm): 25.4 ● Thickness S (mm): 9.525 ● Corner radius RE (mm): 3.175 ● Hole diameter D1 (mm): 9.119 ● Main relief angle AN (°): 0 ● Coating: TiCN+Al2O3+TiN ● Machining type: Roughing ● Breaker: HR ● Thickness (mm): 9.525 ● Blade length (mm): 22.2 ● Chip relief angle (°): 0 ● Machining form: Rough cutting ● Improved crystal growth orientation provides more stable machining performance as well as significantly improved wear resistance and tool life.
