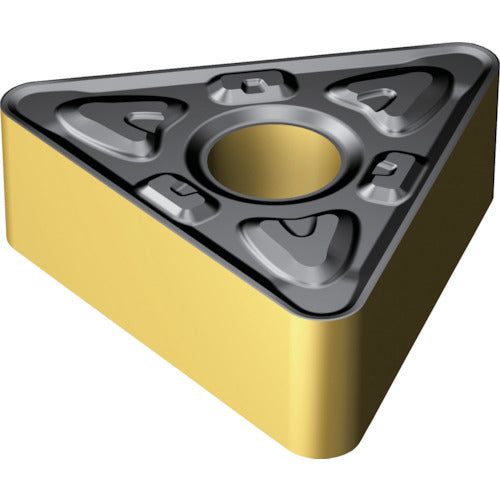

Sandvik T-Max P turning negative insert (112) 4425 TNMG160408-XMR 10 pieces

Catalog number: TNMG160408-XMR Features: ● Suitable for most steel turning processes. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel. ● For rough to finish processing. Specifications: ● Suitable workpiece material: PK ● Insert shape: Triangle ● Effective cutting edge length LE (mm): 15.6978 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Roughing ● Breaker: XMR ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 15.6978 ● Insert relief angle (°): 0 ● Machining form: Rough cutting ● CVD coating material type
