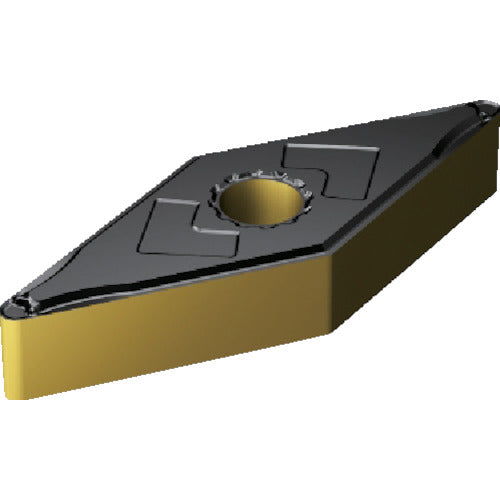

Sandvik T-Max P turning negative insert (112) 4425 VNMG160404-LC 10 pieces

Catalog number: VNMG160404-LC Features: ● Suitable for most steel turning processes. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For general turning steel processes. ● For rough to finish processes. Specifications: ● Suitable workpiece material: Steel ● Chip shape: 35° rhombus ● Effective cutting edge length LE (mm): 16.2063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Finishing ● Corner radius (mm): 0.3969 ● Breaker: LC ● Thickness (mm): 4.7625 ● Blade length (mm): 16.2063 ● Chip relief angle (°): 0 ● Machining type: Finishing cutting ● CVD coating
