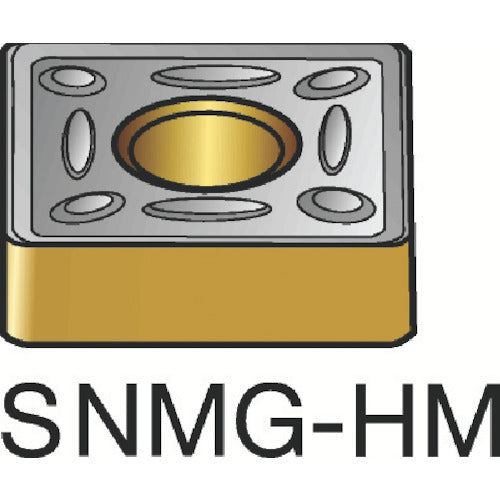

Sandvik T-Max P turning negative insert (340) 2025 SNMG 25 09 24-HM 5 pieces

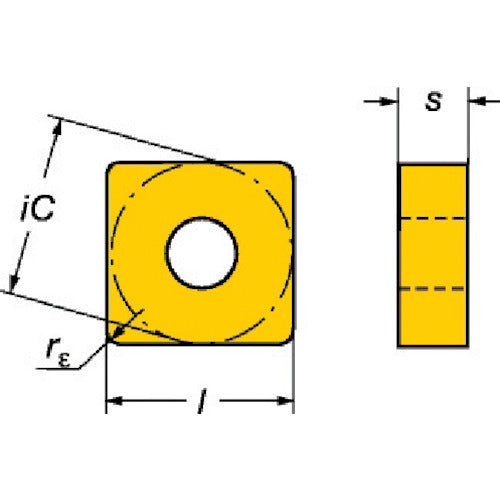

Catalog number: SNMG 25 09 24-HM Features: ● Excellent cutting edge reliability, for intermittent cutting. Applications: ● For general turning and stainless steel processing. ● For semi-finishing to rough processing. Specifications: ● Suitable workpiece: M ● Insert shape: Square ● Effective cutting edge length LE (mm): 23 ● Inscribed circle IC (mm): 25.4 ● Thickness S (mm): 9.525 ● Corner radius RE (mm): 2.38125 ● Hole diameter D1 (mm): 9.119 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Medium ● Breaker: HM ● Thickness (mm): 9.525 ● Blade length (mm): 23 ● Insert relief angle (°): 0 ● Processing form: Medium cutting ● CVD coated carbide material
