Sandvik T-Max P turning negative insert (110) 1105 VNMG 16 04 04-QM 10 pieces

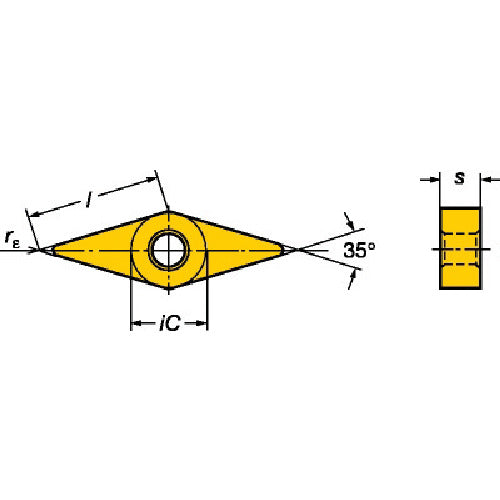

Catalog number: VNMG 16 04 04-QM Features: * Achieves high high-temperature hardness and excellent resistance to plastic deformation and flank wear. * High machining performance, high toughness and sharp cutting edge. Applications: * For general turning and machining of stainless steel. * For general turning and machining of heat-resistant alloys. Specifications: ● Suitable workpiece materials: steel, stainless steel, super alloys and titanium ● Insert shape: 35° rhombus ● Effective cutting edge length LE (mm): 16.2063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiAlN ● Machining type: Medium ● Corner radius (mm): 0.3969 ● Breaker: QM ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 16.2063 ● Insert relief angle (°): 0 ● Machining type: Medium cutting ● PVD coating
