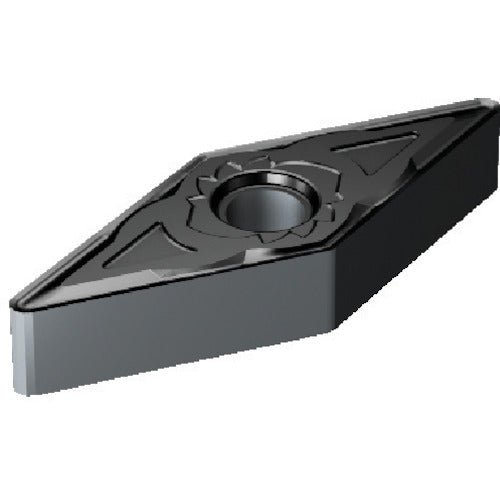

Sandvik T-Max P turning negative insert (110) 1115 VNMG 16 04 08-SM 10 pieces

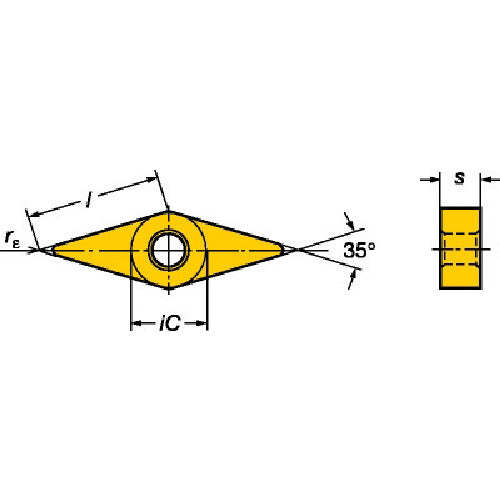

Catalog number: VNMG 16 04 08-SM Features: ●Sharp cutting edge and close contact with ultra-fine grain base material, high high temperature hardness and excellent resistance to plastic deformation are combined with excellent cutting edge reliability. ●Uniform flank wear and high machining performance are achieved. Applications: ●For general turning and stainless steel machining. ●For general turning and heat-resistant alloy machining. Specifications: ● Suitable workpiece materials: stainless steel, super alloys and titanium ● Tip shape: 35° rhombus ● Effective cutting edge length LE (mm): 15.806 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiAlN + TiAlN ● Machining type: Medium ● Corner radius (mm): 0.7938 ● Breaker: SM ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 15.806 ● Tip relief angle (°): 0 ● Machining type: Medium cutting ● PVD coating
