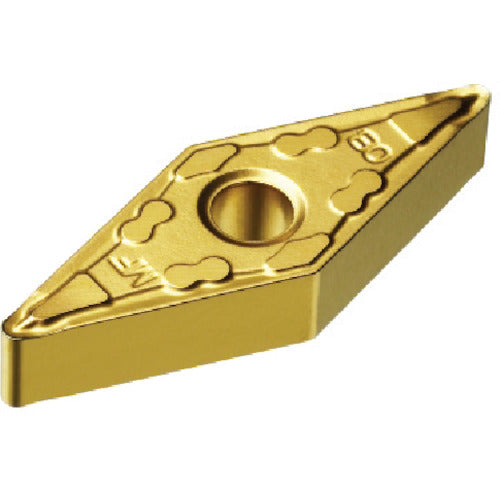

Sandvik T-Max P turning negative insert (110) 235 VNMG 16 04 08-MF 10 pieces

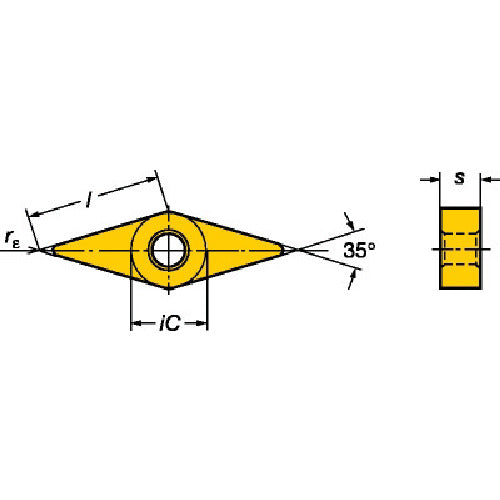

Catalog number: VNMG 16 04 08-MF Features: ●High toughness and edge strength. Ideal for low-speed intermittent cutting. Applications: ●For general turning of steel and stainless steel. ●For rough cutting such as black skin. Specifications: ● Suitable workpiece material: steel, stainless steel ● Chip shape: 35° rhombus ● Effective cutting edge length LE (mm): 15.8063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + TiN ● Machining type: Finishing ● Corner radius (mm): 0.7938 ● Breaker: MF ● Thickness (mm): 4.7625 ● Blade length (mm): 15.8063 ● Chip relief angle (°): 0 ● Machining type: Finishing cutting ● CVD coating
