Sandvik T-Max P turning negative insert (110) H13A VNMG 16 04 08-SF 10 pieces

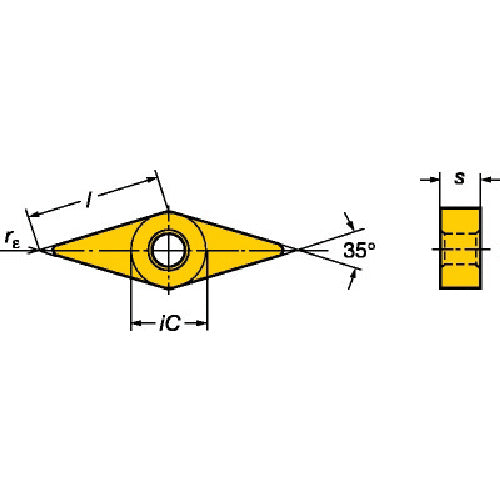

Catalog number: VNMG 16 04 08-SF Features: ●Excellent abrasion resistance and toughness. Applications: ●For general turning of cast iron and non-ferrous metals. ●For rough to semi-rough machining of aluminum alloys. Specifications: ●Suitable workpiece: Stainless steel, superalloy and titanium ●Chip shape: 35° diamond ●Effective cutting edge length LE (mm): 15.806 ●Inscribed circle IC (mm): 9.525 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 3.81 ●Main relief angle AN (°): 0 ●Coating: Uncoated ●Machining type: Finishing ●Corner radius (mm): 0.7938 ●Breaker: SF ●Thickness (mm): 4.7625 ●Blade length (mm): 15.806 ●Chip relief angle (°): 0 ●Machining form: Finishing cutting
