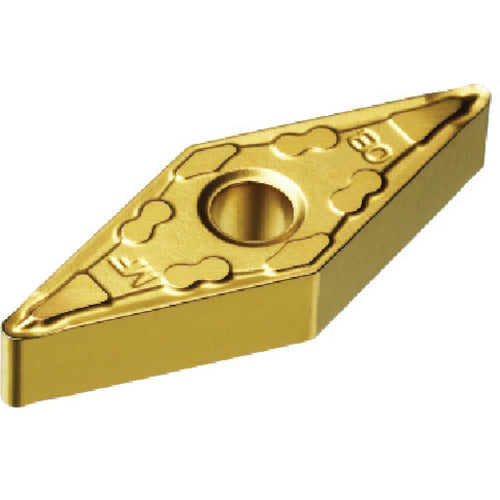

Sandvik T-Max P turning negative insert (112) 2220 VNMG 16 04 04-MF 10 pieces

Catalogue number: VNMG 16 04 04-MF Features: ●Ideal for machining austenitic and duplex stainless steels. ●Compatible with both wet and dry cutting. ●Insert for stainless steel turning, with Inveio coating technology. Applications: ●For general turning stainless steel cutting. Specifications: ● Suitable workpiece material: Stainless steel ● Chip shape: 35° rhombus ● Effective cutting edge length LE (mm): 16.2063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN+Al2O3+TiN ● Machining type: Finishing ● Corner radius (mm): 0.3969 ● Breaker: MF ● Thickness (mm): 4.7625 ● Blade length (mm): 16.2063 ● Chip relief angle (°): 0 ● Machining type: Finishing cutting ● CVD coating
