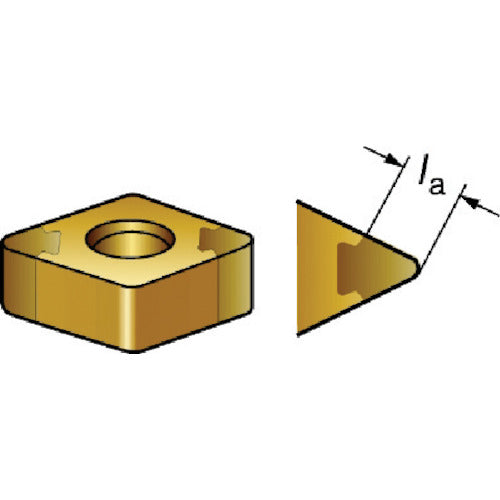

Sandvik T-Max P turning CBN negative insert (620) 7015 DNGA110404S01030A 5 pieces

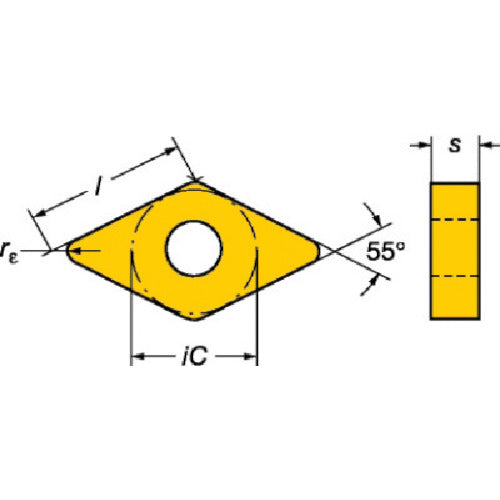

Catalog number: DNGA110404S01030A Features: ● A material with low CBN content that demonstrates high machining performance. Applications: ● For general turning and high-hardness steel machining. ● For high-speed continuous cutting and intermittent light cutting. Specifications: ● Suitable workpiece: H ● Tip shape: Diamond 55° ● Effective cutting edge length LE (mm): 3.2 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiN ● Machining type: Finishing ● Thickness (mm): 4.7625 ● Blade length (mm): 3.2 ● Tip relief angle (°): 0 ● Machining form: Finishing cutting ● CBN tip
