Sandvik T-Max P turning CBN negative insert (620) 7525 CNGA120412T01020B 5 pieces

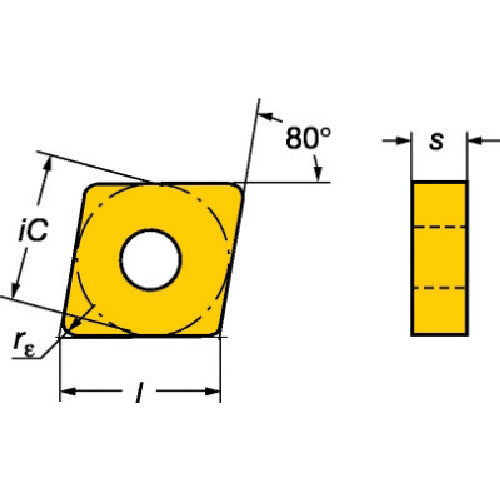

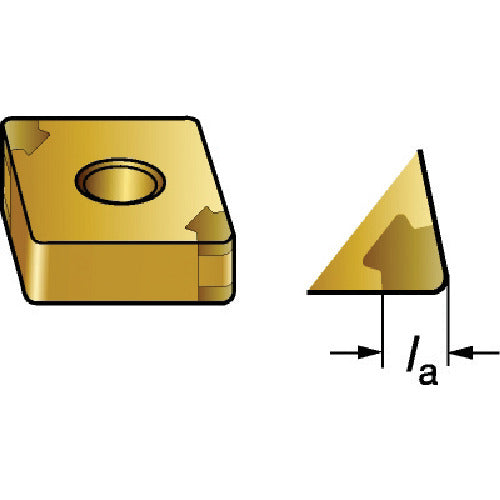

Catalog number: CNGA120412T01020B Features: ●Excellent cutting edge toughness, making it ideal as an auxiliary material for intermittent cutting of high-hardness steel. ●Very hard CBN material. Applications: ●For general turning and high-hardness steel processing. ●For high-speed processing. Specifications: ●Suitable workpiece: KH ●Insert shape: Diamond 80° ●Effective cutting edge length LE (mm): 2.4 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 1.1906 ●Hole diameter D1 (mm): 5.156 ●Main relief angle AN (°): 0 ●Coating: TiN ●Processing type: Finishing ●Thickness (mm): 4.7625 ●Blade length (mm): 2.4 ●Insert relief angle (°): 0 ●Processing form: Finishing cutting ●PVD coating
