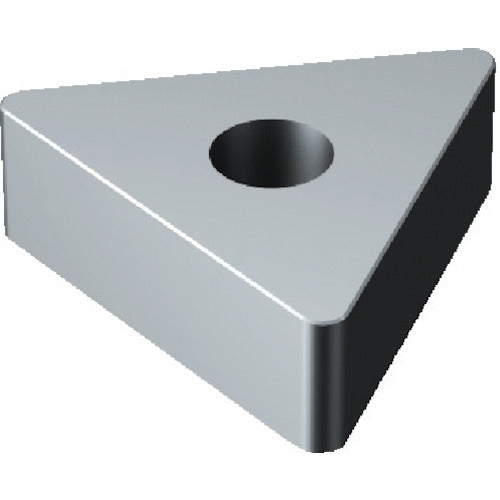

Sandvik T-Max P turning CBN negative insert (620) 7525 TNGA110304T01020B 5 pieces

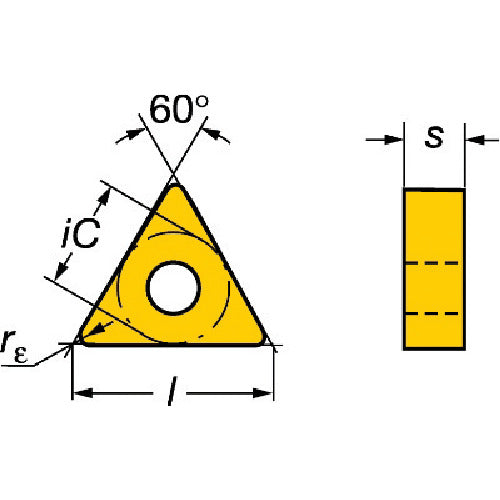

Catalog number: TNGA110304T01020B Features: ●Excellent cutting edge toughness, making it ideal as an auxiliary material for intermittent cutting of high-hardness steel. ●Very hard CBN material. Applications: ●For general turning and high-hardness steel processing. ●For high-speed processing. Specifications: ●Suitable workpiece: KH ●Chip shape: Triangle ●Effective cutting edge length LE (mm): 1.8 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 3.175 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 2.261 ●Main relief angle AN (°): 0 ●Coating: TiN ●Processing type: Finishing ●Thickness (mm): 3.175 ●Blade length (mm): 1.8 ●Chip relief angle (°): 0 ●Processing form: Finishing cutting ●CBN chip
