Sandvik T-Max P turning CBN negative insert (620) CB20 CNMA 120404S01020E 5 pieces

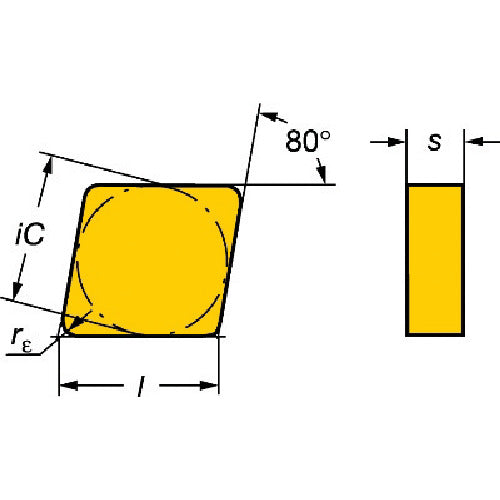

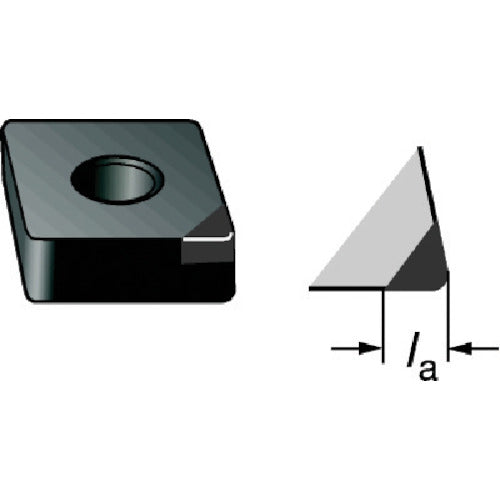

Catalog number: CNMA 120404S01020E Features: ●This is the first recommended material for continuous cutting and light intermittent cutting of high-hardness steel. Applications: ●For general turning and high-hardness steel processing. ●For high-speed processing. Specifications: ●Suitable workpiece: H ●Insert shape: Diamond 80° ●Effective cutting edge length LE (mm): 2.8 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 5.156 ●Main relief angle AN (°): 0 ●Coating: Uncoated ●Processing type: Finishing ●Thickness (mm): 4.7625 ●Blade length (mm): 2.8 ●Insert relief angle (°): 0 ●Processing form: Finishing cutting ●CBN insert
