Sandvik T-Max P turning CBN negative insert (620) 7015 VNGA160408S01030A 5 pieces

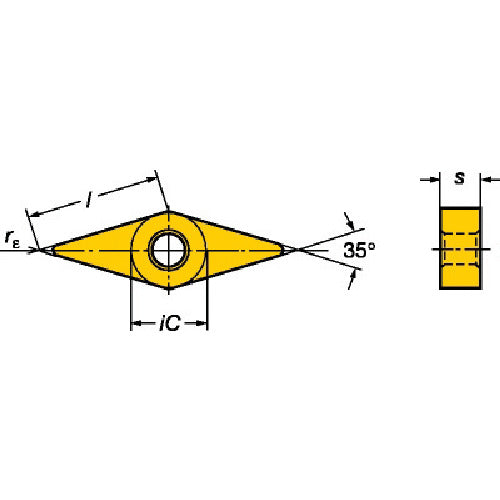

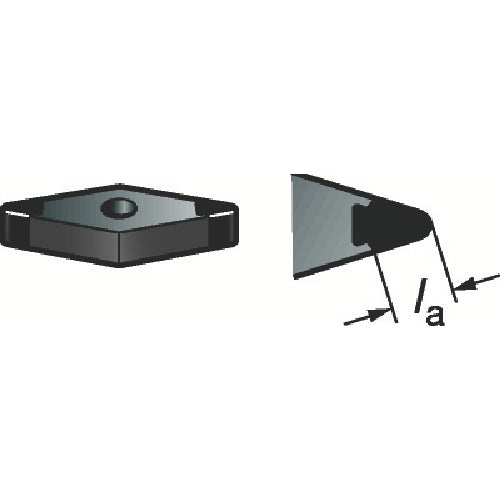

Catalog number: VNGA160408S01030A Features: ● A material with low CBN content that demonstrates high machining performance. Applications: ● For general turning and high-hardness steel machining. ● For high-speed continuous cutting and light intermittent cutting. Specifications: ● Suitable workpiece: High-hardness material ● Insert shape: 35° diamond ● Effective cutting edge length LE (mm): 3.5 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiN ● Machining type: Finishing ● Corner radius (mm): 0.7938 ● Thickness (mm): 4.7625 ● Blade length (mm): 3.5 ● Insert relief angle (°): 0 ● Machining type: Finishing cutting ● PVD coating
