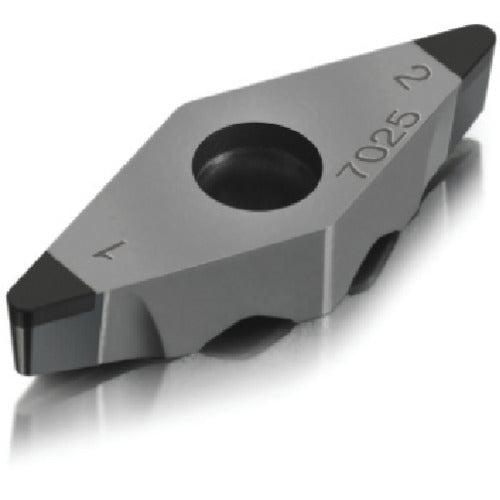

Sandvik T-Max P turning CBN negative insert (620) 7025 VNGA160404S01030A 5 pieces

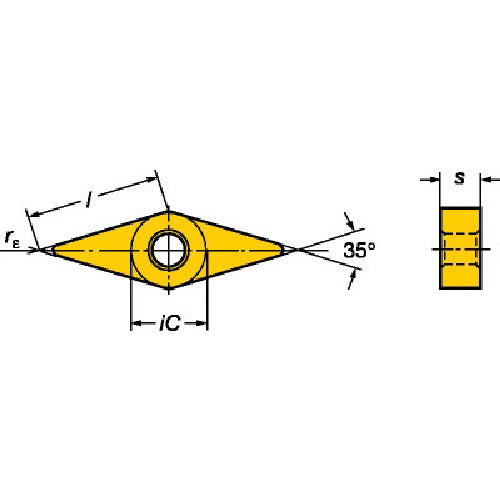

Catalog number: VNGA160404S01030A Features: ● A material with a medium CBN content that demonstrates high machining performance. Applications: ● For general turning and machining of high-hardness steel. ● For intermittent heavy cutting or medium-speed continuous cutting. ● For finishing. Specifications: ● Suitable workpiece: High-hardness material ● Insert shape: 35° diamond ● Effective cutting edge length LE (mm): 4.4 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: Uncoated ● Machining type: Finishing ● Corner radius (mm): 0.3969 ● Thickness (mm): 4.7625 ● Blade length (mm): 4.4 ● Insert relief angle (°): 0 ● Machining form: Finishing cutting
