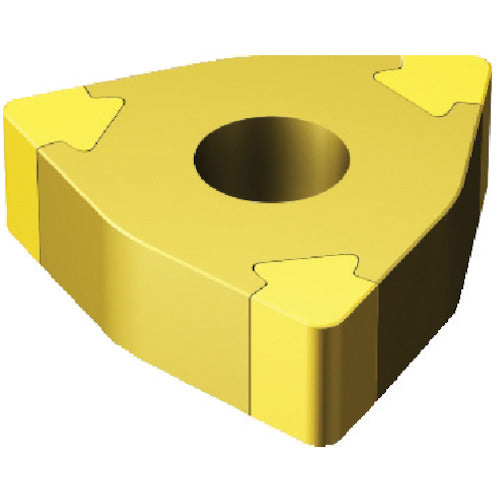

Sandvik T-Max P turning CBN negative insert (620) 7525 WNGA080404T01020BWG 5 pieces

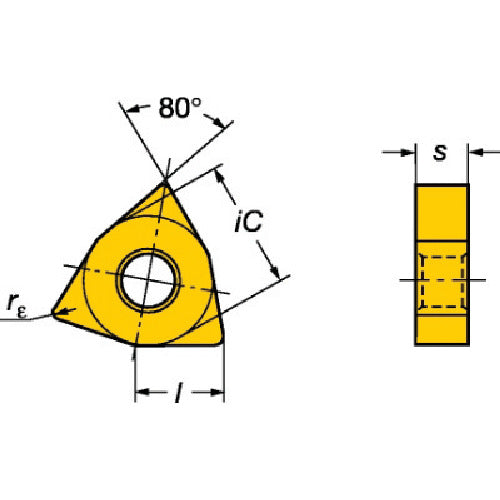

Catalog number: WNGA080404T01020BWG Features: ●Excellent cutting edge toughness, making it ideal as an auxiliary material for intermittent cutting of high-hardness steel. ●Very hard CBN material. Applications: ●For general turning and high-hardness steel processing. ●For high-speed processing. ●For finishing processing. Specifications: ● Suitable workpiece material: KH ● Chip shape: 80° hexagon ● Effective cutting edge length LE (mm): 3.1 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiN ● Machining type: Finishing ● Corner radius (mm): 0.3969 ● Breaker: WG ● Thickness (mm): 4.7625 ● Blade length (mm): 3.1 ● Chip relief angle (°): 0 ● Machining type: Finishing cutting ● PVD coating
