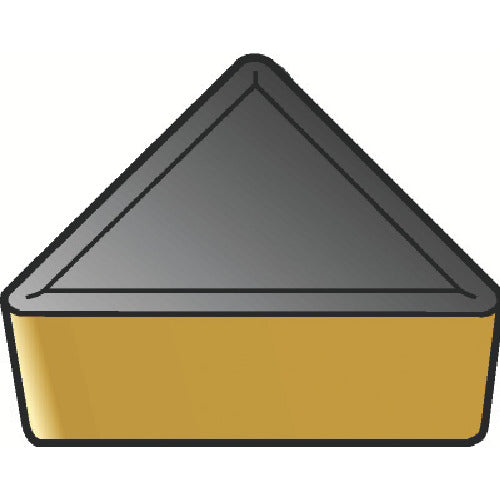

Sandvik T-Max S turning positive insert (130) 2025 TCGR 06 01 04 10 pieces

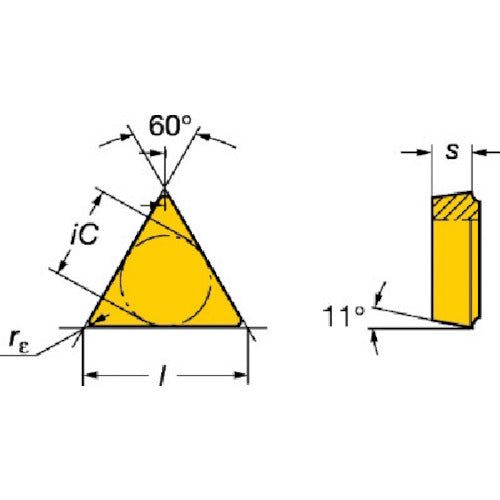

Catalogue number: TCGR 06 01 04 Features: ● Excellent cutting edge reliability, suitable for intermittent cutting. Applications: ● For general turning and stainless steel machining. ● For semi-finishing to rough machining. Specifications: ● Suitable workpiece: M ● Insert shape: Triangle ● Effective cutting edge length LE (mm): 6.22 ● Inscribed circle IC (mm): 3.96875 ● Thickness S (mm): 1.5875 ● Corner radius RE (mm): 0.3969 ● Main relief angle AN (°): 7 ● Coating: TiCN+Al2O3+TiN ● Machining type: Finishing ● Corner radius (mm): 0.3969 ● Breaker: 53 ● Thickness (mm): 1.5875 ● Blade length (mm): 6.22 ● Insert relief angle (°): 7 ● Machining type: Finishing cutting ● CVD coated carbide material
