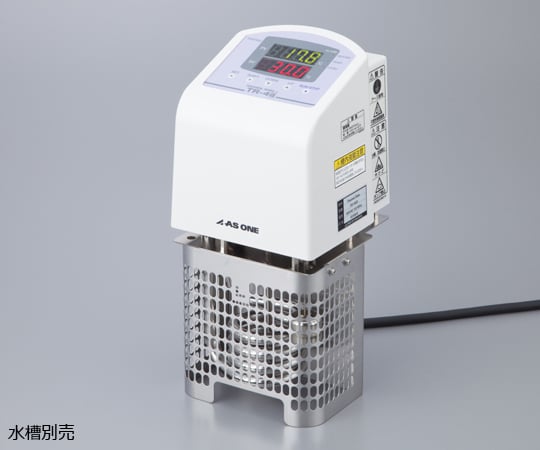

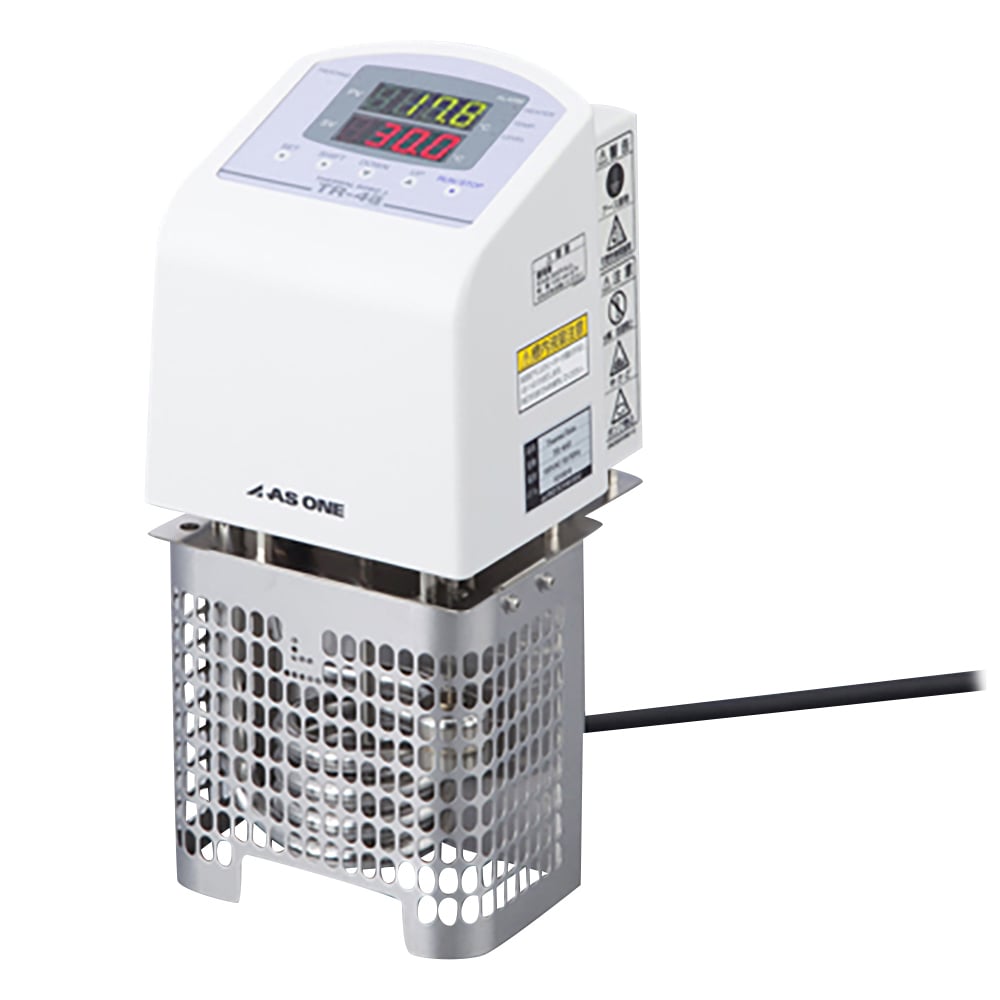

Thermal Robo TR-4α 1 unit

All models come with float-type boil-dry prevention function! Furthermore, flow rate adjustable types are also available! Microcomputer-based PID control achieves highly precise temperature control. It has a high level of safety thanks to the use of a double lock mechanism consisting of two independent circuits. Equipped with an on/off timer function, it can be automatically started or stopped after a set time has elapsed. External dimensions (mm): 140 x 150 x 310 Type: Oil bath Temperature adjustment range: Room temperature +5 to 180°C Temperature setting range *1: -2.0 to +180.0℃ *2 Temperature control accuracy *3: ±0.05℃~ function Program (maximum 8 steps, repeat setting possible) Buzzer alarm Abnormal overheating prevention device (thermostat), circuit protector, float type dry-burn prevention Sensor: Platinum resistance thermometer (Pt100Ω) Heater capacity: 1.2kW (made of stainless steel (SUS316)) Mixing mechanism: Propeller mixing type Timer setting range: 1 minute to 99 hours (in 1 minute increments) Clamp mounting width: 40mm Power supply: AC100V 50/60Hz (power consumption: MAX1.3kVA) *If using water instead of oil, set the maximum temperature to 80°C. *Please use silicone oil with a flash point of 300°C or higher and a viscosity of 100 cSt or less as a heat transfer medium. *External circulation is not possible due to propeller stirring. *Aquarium is not included. *1 The unit does not have a cooling function. Please use an external cooling device (optional). *2 If using water instead of oil, set the upper temperature limit to 80°C. *3 Performance of the controller alone. Varies depending on usage conditions.
