Sisiku Stainless Steel Caster with Swivel Urethane Wheels SUNJ-125-POTH 1 pc
Sisiku Stainless Steel Caster with Swivel Urethane Wheels SUNJ-125-POTH 1 pc
Regular price
¥11,616
Regular price
Sale price
¥11,616
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

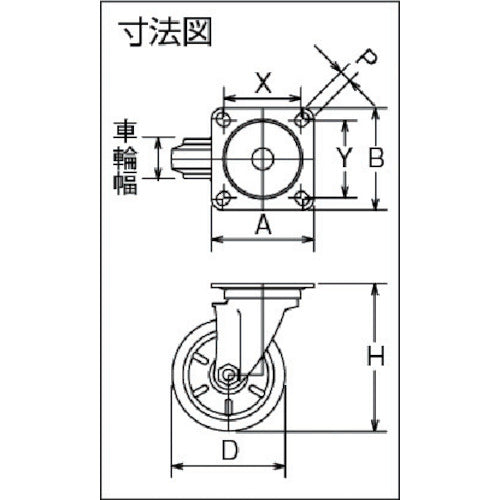

Catalogue number: SUNJ-125-POTH Features: ●Stainless steel (SUS304) is used for the core, swivel section, and bearings. ●The swivel section is equipped with a smooth-moving double-layer bearing with a dust cover. Applications: ●Transportation of electronic parts and precision measuring devices Specifications: ●Wheel diameter D (mm): 125 ●Type: Swivel ●Allowable load (daN): 205 ●Allowable load (kgf): 210 ●Wheel width (mm): 35 ●Mounting height H (mm): 165 ●Mounting seat A (mm): 102 ●Mounting seat B (mm): 102 ●Mounting pitch X (mm): 75-80 ●Mounting pitch Y (mm): 75-80 ●Mounting hole diameter P (mm): 11 ●Plate type ●Stainless steel needle bearing included (wheel diameter 200 mm includes stainless steel collar) ●Swivel type Materials/Finish: ●Hardware: Stainless steel (SUS304) ●Wheels: Nylon wheel, urethane
