Sisiku shock absorbing caster, fixed rubber wheel, diameter 200, SAK-HO-200W, 1 piece

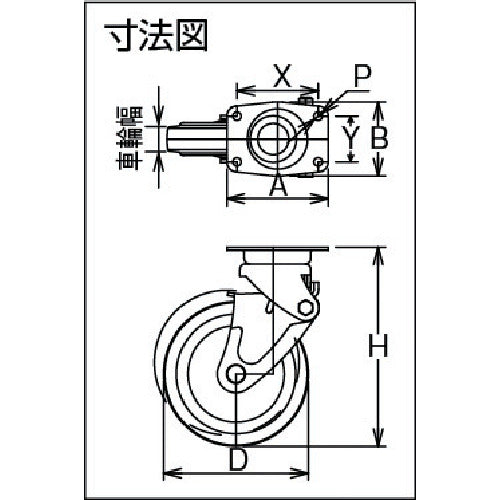

Catalog number: SAK-HO-200W Features: ● Caster for towing. ● The wheels are a unique box style that we are confident in for its strength. ● The use of a center coil spring system reduces shock and vibration from all directions and prevents noise generation. Uses: ● Transporting precision instruments and parts Specifications: ● Wheel diameter D (mm): 200 ● Type: Fixed ● Set load (daN): 196 ● Set load (kgf): 200 ● Wheel width (mm): 45 ● Mounting height H (mm): 275-260 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 102 ● Mounting pitch X (mm): 112 ● Mounting pitch Y (mm): 63 ● Mounting hole diameter P (mm): 11.5 ● Plate type ● Fixed type ● Press bearing (with retainer) included Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromate finish ● Wheels: Steel wheels ● Wheels: Rubber (W) Note: ● The set load indicates the load at which the most effective cushioning against vibration can be obtained per unit.
