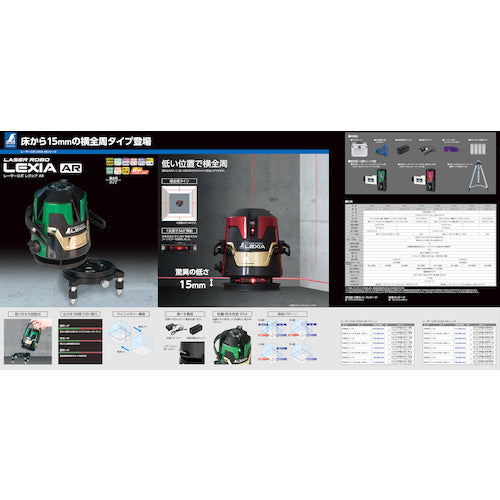

Catalog number: 70873 Features: ●Can project horizontal lines at a position 15 mm above the floor. ●Can switch between three levels of laser light intensity. ●Can be used for high output in strong mode and for long periods of time in weak mode. Applications: ●For marking out work at construction sites. Specifications: ● Height (mm): 190 ● Width (mm): 128 ● Precision: ±1mm/7.5m ● Automatic correction range: ±3° ● Power supply: Lithium-ion battery ● Protection rating: IP54 ● Light source: Visible semiconductor laser ● Wavelength (nm): 513 to 530 ● Laser safety standard: Class 2 JIS C6802: 2018 ● Braking method: Pendulum + ceramic damper method ● Line width (mm): 5m Weak approx. 1.5mm, medium approx. 1.8mm, strong approx. 2.0mm (mode) ● Right angle precision: 90° ±0.03° ● Power supply (V): Lithium-ion battery ● Vertical in 2 directions, horizontal all around, ground mark Set contents/accessories: ● Laser level: 70863 ● Receiver: 71501 ● Tripod: 76629 ● 4 AA alkaline batteries ● AC adapter ● Level adjustment tripod adapter ● Aluminum case ● Charging battery box
