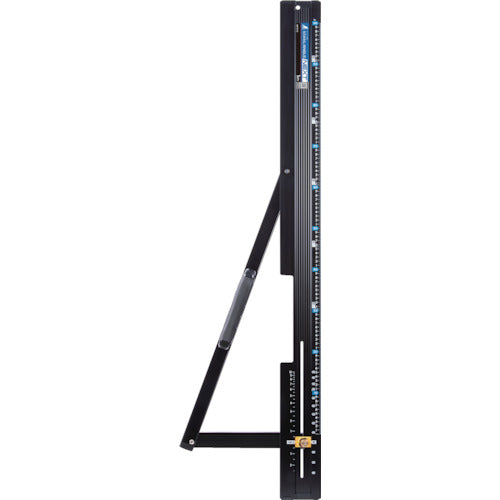

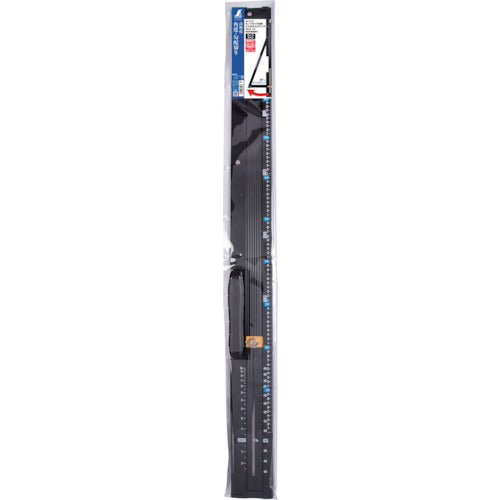

Shinwa Circular Saw Guide Ruler Foldable L-Angle Next 1m with Angle Cutting Function 73123 1 Unit

Catalog number: 73123 Features: ●The main body can be folded, making it easy to carry and store. ●By changing the angle of the stop, you can cut at any angle between 75 and 135°. ●You can easily set it to 90° by simply fixing it to the 90° slit. ●Uses a flap-type locking screw that can be firmly fixed. ●Has a groove for a slider (sold separately). Simply slide it along the groove to prevent misalignment during cutting. ●Has metric markings that can be used for marking and measuring dimensions. ●Has a protective cap to protect the material. ●The guide surface is made of a thin stainless steel plate. Specifications: ● Total length (mm): 1217 ● Width (mm): 345 ● Thickness (mm): 73 ● Nominal dimension (mm): 1000 ● Angle precision: ±0.1mm/100mm (90° only) ● Stop height (mm): 15 ● Right angle precision: ±0.1mm/100mm ● Stop height: 15mm ● Angle adjustment range: 75 to 135° ● With angle scale and minute gradient scale (return gradient) Material/Finish: ● Body: Aluminum ● Guide surface: Stainless steel ● Protective cap, angle indicator plate: ABS resin ● Knob screw: Stainless steel, brass ● Handle: ABS resin, elastomer resin
