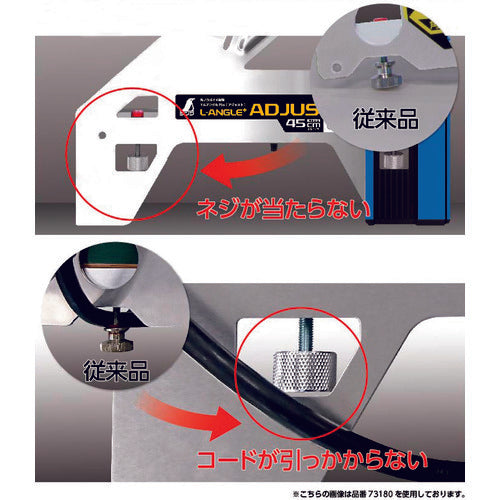

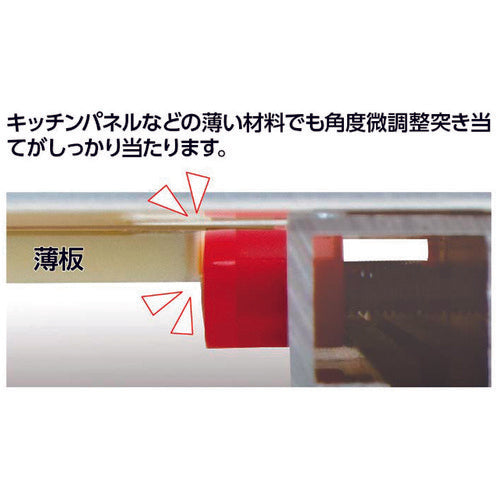

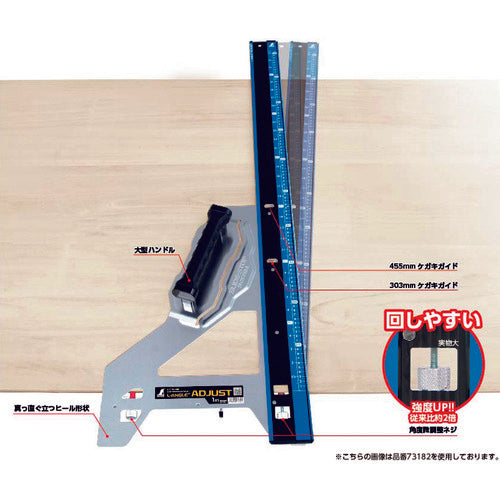

Catalog number: 73180 Features: ●Not only right angles, but also fine adjustments to the millimeter are possible. ●The angle adjustment stop makes a firm contact with thin materials such as kitchen panels. ●The heel shape ensures that the screw does not directly touch the ground, and the cord of an electric circular saw will not get caught. ●Combined scales of shaku equivalent and metric scales are included. Applications: ●As a cutting guide for electric circular saws, jigsaws, trimmers, etc. Specifications: ● Total length (mm): 632 ● Width (mm): 350 ● Thickness (mm): 83 ● Nominal dimension (mm): 450 ● 90 degree direction (mm): 450 ● Effective cutting length (mm): 450 ● Angle precision: Less than 0.1 mm per 100 mm ● Right angle precision: Less than 0.1 mm per 100 mm ● Angle fine adjustment range: Guide tip is approximately 20 mm to the left, guide tip is approximately 18 mm to the right ● With angle fine adjustment function Material/Finish: ● Body: Aluminum Guide surface: Stainless steel ● Large handle: ABS resin, elastomer resin
