アズワン

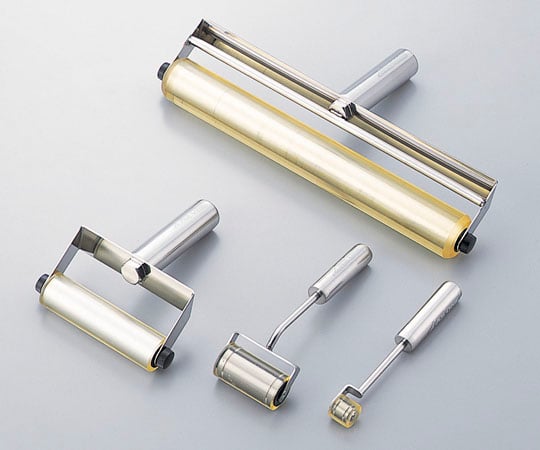

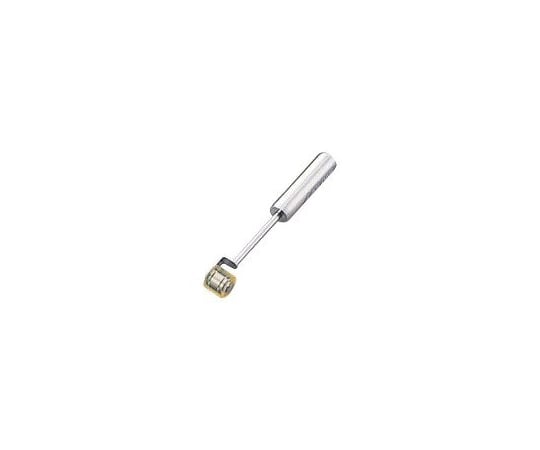

Stick roller conductive type W30 1 piece
Stick roller conductive type W30 1 piece
Regular price
¥29,040
Regular price
Sale price
¥29,040
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Conductive urethane adhesive rubber is used to prevent static electricity from building up on the rollers and workpieces.
The arm and grip are made of stainless steel, so they are grounded through the grip even when static electricity is generated.
Since no adhesive is used, there is no glue transfer.
Since it is silicon-free, it can also be used on semiconductor substrates.
Dust that has accumulated on the roller can be removed using a special transfer sheet (sold separately).
The transfer sheet can be washed with water and reused. Model number: W30
Roller dimensions (mm): 30 x φ20
Total length (mm): 154
Material: Roller: Antistatic PU (polyurethane), Shaft/Grip: Stainless steel (SUS304)
Surface resistance: 10^8Ω
*The stick roller cannot be used alone. Please select the transfer sheet (sold separately) according to the size.
RoHS2 (EU)2015/863 compliant [About RoHS]
View full details
