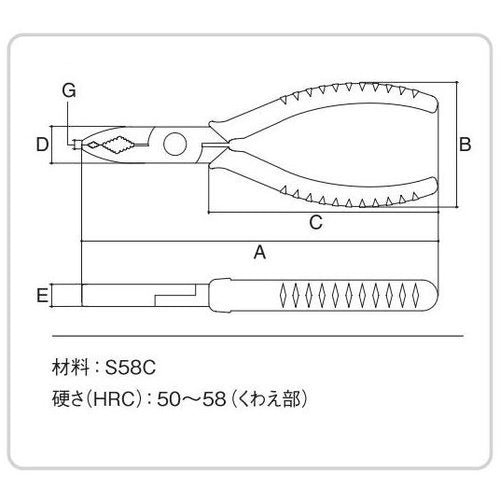

Catalog number: DS-150TZ Features: *The vertical groove and tip gripping part have been changed to accommodate truss screws. *The tip shape is easy to grip and the diamond shape provides three-point support for a secure grip. Applications: *For removing crushed screws. Specifications: ● Total length (mm): 150 ● Grip width (mm): 52 ● Tip width (mm): 15.3 ● Thickness (mm): 9.4 ● Tip length (mm): 26 ● Compatible screws: M2 to M4 (truss screws), M1.6 to M6 (pan head screws), 3 to 13 mm (hexagonal screws) ● Applicable truss screws: M2 to M4 (DS-150TZ, DS-175TZ), M2 to M6 (DS-215TZ) ● Applicable pan head screws: M1.6 to M6 (DS-150TZ, DS-175TZ), M2 to M8 (DS-215TZ) ● Dimensions (mm): A = 150 / B = 52 / C = 98 / D = 15.3 / E = 9.4 / G = 4.5 Material / Finish: ● Carbon steel for mechanical construction ● Grip: Elastomer resin Caution: ● Never conduct electricity. This is a non-insulated tool.
