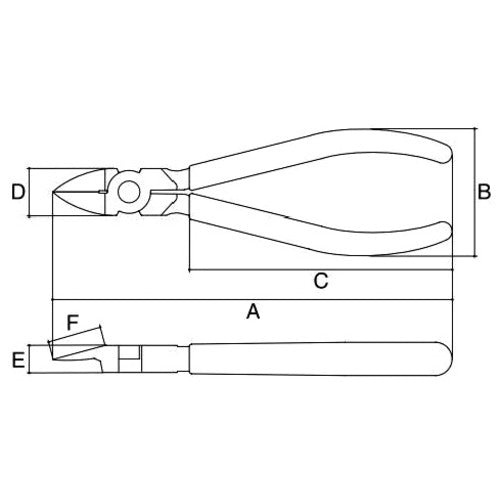

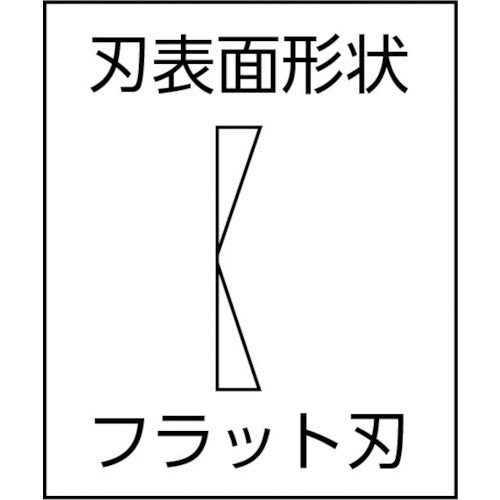

Catalog number: PNP-190G-S Features: ● Flat blade maintains sharp cutting edge. ● Comes with a blade misalignment stopper. ● Comes with blade opening adjustment function Applications: ● For the plastic molding industry. Specifications: ● Total length (mm): 197 ● Blade surface shape: Flat blade ● Cutting capacity (mm) ABS resin: ○ ● Cutting capacity (mm) Plastic: φ8 ● Cutting capacity (mm) Resin: φ8 ● Flat blade ● Spring included ● Dimensions (mm): A=197/B=49/C=132/D=22/E=12/F=121 Material/Finish: ● Carbon steel for mechanical construction (190G-S is vanadium steel) ● Grip: PVC Caution: ● Never conduct electricity through it. This is a non-insulated tool. ● Do not use as a hammer. ● Do not use beyond the range of use.
