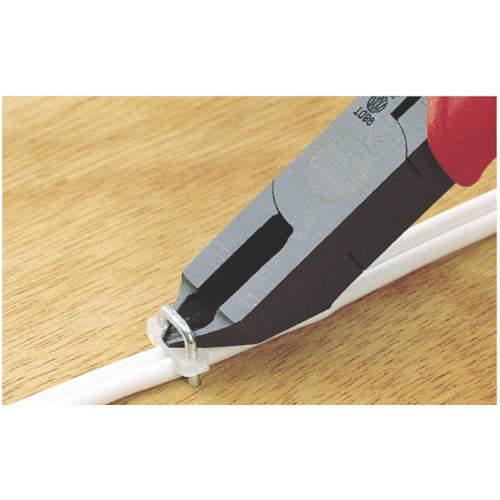

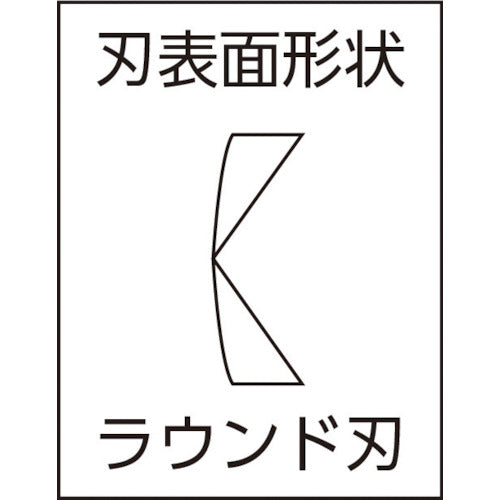

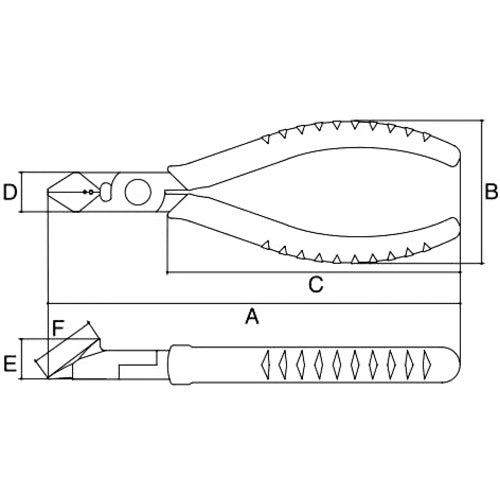

Catalog number: DNP-100Z Features: ●One tool can be used for various electrical wiring work. ●The blade angle of 37° allows the blade to be inserted from an oblique direction, making it convenient for cutting in complicated or deep places. ●The tip of the blade can be used to remove staples. Applications: ●Electrical work. Specifications: ●Total length (mm): 114 ●Blade surface shape: Round blade ●Cutting capacity (mm) Iron wire: φ1.0 ●Cutting capacity (mm) Soft iron wire: ○ ●Cutting capacity (mm) Copper wire: φ1.2 ●Cutting capacity (mm) Soft copper wire: ○ ●Cover: Elastomer resin ●Round blade ●Cutting capacity (MM2) Copper stranded wire: 2.0 ●Dimensions (mm): A=133/B=52/C=93/D=14/E=15/F=23 Material/Finish: ●Vanadium steel ●Grip: Elastomer resin Caution: ●Never conduct electricity. This is a non-insulated tool. ●Do not use as a hammer. ●Do not use beyond the range of use.
