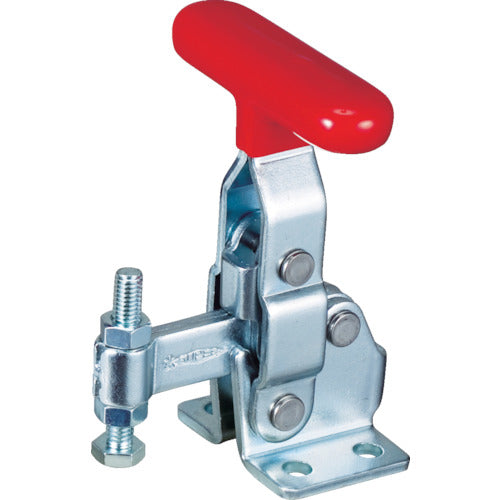

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 89mm Clamping Force: 1kN Flange Base TDP40F 1 pc

Catalog number: TDP40F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 89 ● Clamping force (kN): 1.0 ● Attached bolt diameter: M6 x 40 ● Clamp arm movement angle (°): 118 ● Handle operation angle (°): 70 ● Clamping force (kN): 1.0 ● Clamping force (kN): 1 ● Downward pressing type ● Vertical handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN0640 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
