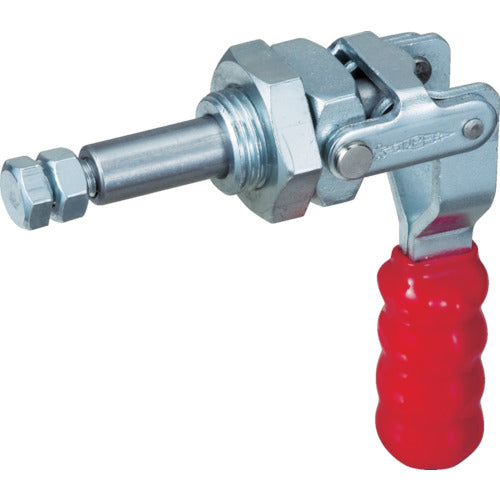

Super Push-pull toggle clamp Base type: Bracket Maximum load: 0.91kN TPPM50 1 piece

Catalog number: TPPM50 Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 73 ● Pressing force (kN): 0.91 ● Attached bolt diameter: M6 x 25 ● Handle operation angle (°): 180 ● Stroke (mm): 19 ● Push-pull compatible type ● Bracket type Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt nut: TNN0625 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the pressing position and bolt adjustment.
