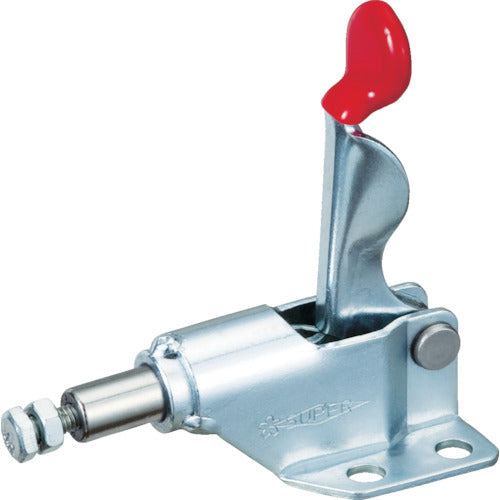

Super Horizontal Push Toggle Clamp Total Length: 106mm Clamping Force: 0.5kN TP06F 1 pc

Catalog number: TP06F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 106 ● Pressing force (kN): 0.5 ● Attached bolt diameter: M4 x 15 ● Handle operation angle (°): 93 ● Stroke (mm): 13 ● Horizontal pressing type ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN0415 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the pressing position and bolt adjustment.
