(株)スーパーツール
Super magnetic screw support long stroke type (2 pieces in a set) Stroke: 60-90 MSS90LS 1 set
Super magnetic screw support long stroke type (2 pieces in a set) Stroke: 60-90 MSS90LS 1 set
Regular price
¥29,687
Regular price
Sale price
¥29,687
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

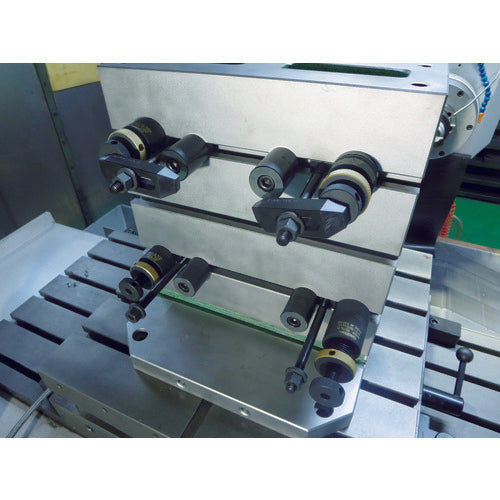

Catalog number: MSS90LS Features: ●By providing an intermediate male screw, a long stroke has been achieved. (1.5 to 2 times longer than our previous model) ●Can be installed horizontally. ●By turning the intermediate male screw, the position can be shifted or the workpiece can be scratched when the male screw is turned under load, but this problem has been solved by turning the intermediate male screw. ●The upper and lower male screws have the same direction but different pitches, so the intermediate male screw can be adjusted with light force. ●The lock screw (lock piece) that locks the male screw prevents the screw from loosening. Applications: ●For supporting heavy objects, adjusting the height of the clamp, and suppressing chatter during cutting. ●With magnetism, it can be used for horizontal and vertical jigs. (Please use support tips for uneven surfaces or odd-shaped workpieces.) Specifications: ●Outer diameter (mm): 50 ●Height (mm): 60-90 ●Load capacity (kN): 80 ●Top diameter (mm): 40 ●Thread diameter: 8.2 ●Body diameter (mm): 50 ●Stroke (mm): 30 ●Set of 2 Materials/Finish: ●Steel (S45C) ●Treatment: Hardening (35-47HRC), black dye finish
