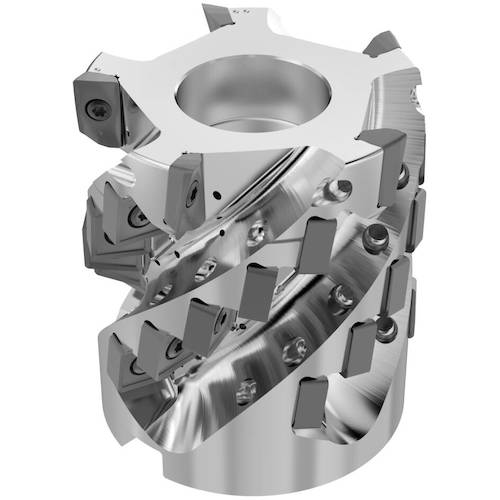

SECO Milling cutter Other cutters R220.82-0080-068-SNXO16.5A 1 piece

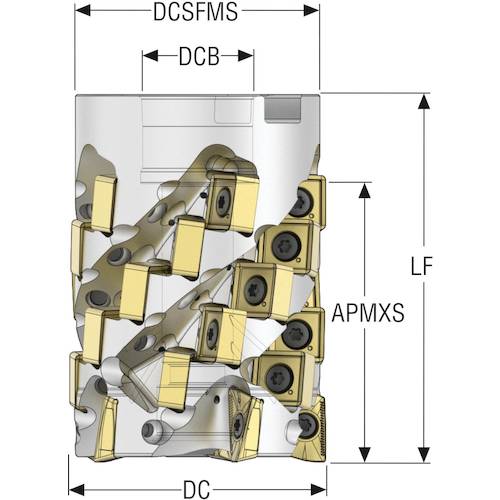

Catalog number: R220.82-0080-068-SNXO16.5A Features: ●Delivers high feed rates, large depth of cut and improved chip removal in contouring and profiling operations. ●Addresses customer demands for lower manufacturing costs. ●The Seco Helical SN8−13 features a double-sided insert with eight cutting edges to increase efficiency in groove, side shoulder and arc (rough) machining with a significantly reduced cost per cutting edge. ●ISO material classification Designed for challenging applications including steel (P), stainless steel (M), cast iron (K) and heat-resistant alloy (S) materials, the cutter offers application-specific sub-family designs with left or right-hand helix, half or full effective tooth options, two front inserts and many radius choices for long tool life and maximum chip removal. ●Also reliable and easy to use, the Helical SN8−13 eliminates incorrect indexing of front and helix inserts, reducing operator error. Specifications: ●DC(mm): 80.0 ●DCB(mm): 32.0 ●Insert: XO.X1605 / SN.U1306 ●APMXS(mm): 68.0 ●DCSFMS(mm): 75.0 ●LF(mm): 90.0 ●RPMX: 6500 ●ZEFP: 5 ●ZNP: 30 ●Mounting shape: Arbor ●R220.82-SNXO16 One meter specification
