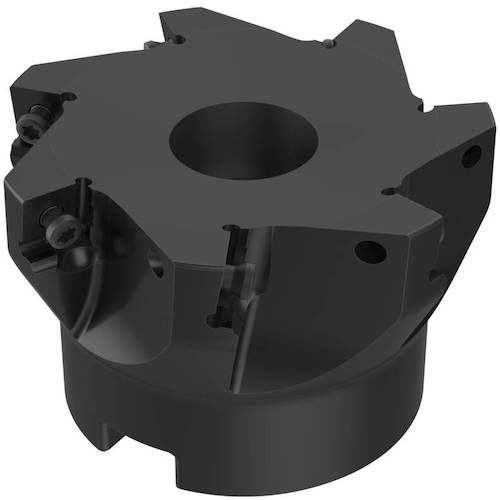

SECO Milling Other Cutter R220.99-0063-09-7T 1 pc
SECO Milling Other Cutter R220.99-0063-09-7T 1 pc
Regular price
¥88,940
Regular price
Sale price
¥88,940
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: R220.99-0063-09-7T Features: ●Low cost, highly efficient corner cutting can be achieved. ●A cutter with high rigidity and low resistance thanks to its thick 4-corner position insert. ●The MINI and MIDI SQUARE series are highly versatile for groove cutting, contouring and face milling in general steel, stainless steel and cast iron. Specifications: ●DC(mm): 63.0 ●DCB(mm): 22.0 ●Insert: SONX09 ●APMXE(mm): 1.7 ●APMXS(mm): 8.0 ●DCSFMS(mm): 47.0 ●KAPRS°: 90 ●LF(mm): 40.0 ●RPMX: 13200 ●ZEFP: 7 ●Mounting shape: Arbor ●SECO shoulder cutter ●Compatible insert: SONX09T3... ●R220.99-09/12 one meter specification
