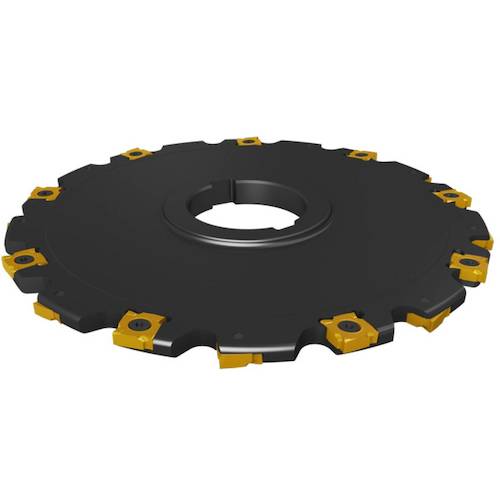

SECO Milling Side Cutter 335.19 Cutter 335.19-200.07.50-9 1 piece

Catalogue number: 335.19-200.07.50-9 Features: ●A side cutter with extremely low cutting resistance. A maximum of 4 corners can be used with inserts. ●R/L handed inserts produce a flat groove bottom. ●A full R shape is also possible by combining inserts. ●An economical, high-precision, low-cutting resistance side cutter system for narrow groove processing and cutting. Specifications: ●CDX(mm): 62.6 ●CW(mm): 7.0 ●DCB(mm): 50.0 ●DC(mm): 200.0 ●DCSFMS(mm): 69.0 ●LF(mm): 9.5 ●RPMX: 5200 ●SNHQ: 1204/12045*, 1204/12045* ●THUB(mm): 12.0 ●ZEFP: 9 ●ZNP: 18 ●Mounting shape: Arbor hole ●CTWS (compatible chip): CW=7: SNHQ1204..L+R / 335.19-1204 | CW=8: SNHQ12045..L+R / 335.19-12045 ●DC: 200.0mm DCB : 50.0mm DCFMS : 69.0mm●Shank type: Arbor hole●CW: 7.0mm●ZNP (Number of chips attached): 18●ZEFP (Number of effective teeth): 9●THUB: 12.0mm●Width 7/8/10 mm − Groove processing_x000D_●Cutter 335.19 − Insert SNHQ One meter specification
