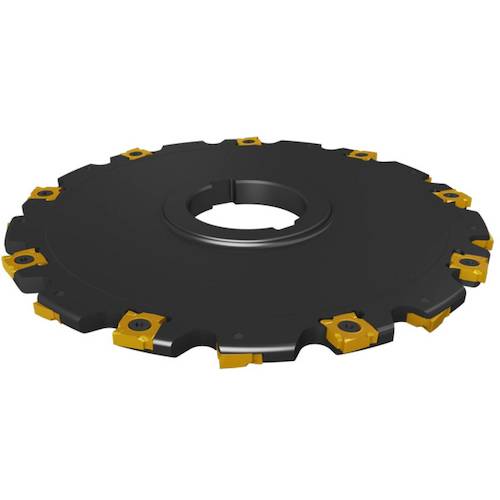

SECO Milling Side Cutter 335.19 Cutter 335.19-200.10.50-9 1 piece

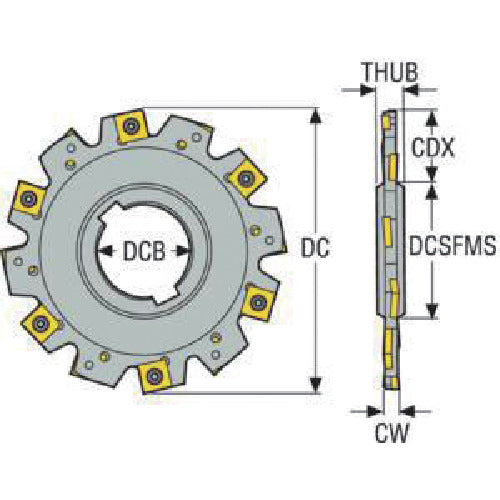

Catalog number: 335.19-200.10.50-9 Features: ●Side cutter with extremely low cutting resistance. Inserts can be used with up to 4 corners. ●R/L handed inserts produce a flat groove bottom. ●Full R shape is also possible by combining inserts. ●Economical, high-precision, low-cutting resistance side cutter system for narrow groove processing and cutting. Specifications: ●CDX(mm): 63.6 ●CW(mm): 10 ●DCB(mm): 50.0 ●DC(mm): 200.0 ●DCSFMS(mm): 69.0 ●LF(mm): 11.0 ●RPMX: 4700 ●SNHQ: 1205, 1205 ●THUB(mm): 12.0 ●ZEFP: 9 ●ZNP: 18 ●Mounting shape: Arbor hole●CTWS (compatible chip): SNHQ1205..L+R / 335.19-1205●DC: 200.0mm DCB: 50.0mm DCFMS: 69.0mm●Shank type: Arbor hole●CW: 10.0mm●ZNP (number of chips installed): 18●ZEFP (number of effective teeth): 9●THUB: 12.0mm●Width 7/8/10 mm - Groove processing_x000D_●Cutter 335.19 - Insert SNHQ One meter specification
