Seco Milling Turbo Mill Cutter R217.69-1616.0-15-06.3N 1 piece

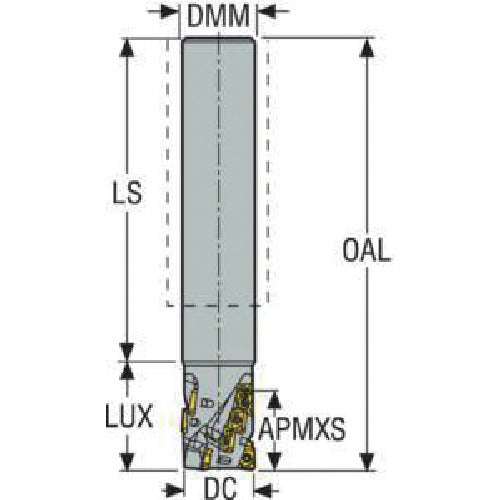

Catalog number: R217.69-1616.0-15-06.3N Features: ●SECO's representative shoulder cutter turbo mill. ●The highly versatile turbo mill is suitable for most roughing, semi-finishing and finishing processes, achieving long tool life and high precision due to its optimized properties of reducing heat generation and cutting force. ●This shoulder cutter has two corners and can also be used for 3D machining. There are a wide variety of combinations of nose radius settings, cutting edge treatments and material types. ●Seco Tools' lineup of high-performance turbo helical cutters has improved high feed rates, cutting depths and chip removal rates for contouring and profiling applications. ●These cutters offer the first choice for mixed production, in all workpiece materials Specifications: ●APMXS(mm):15.0●DC(mm):16.0●DCB(mm):-●DCSFMS(mm):-●LF(mm):-●Insert:XO.X06..●DMM(mm):16.0●KAPRS°:90●LS(mm):80.0●LUX(mm):30.0●OAL(mm):110.0●RPMX:48000●ZEFP:3●ZNP:9●Mounting shape:Straight●SECO Turbo Mill Shoulder Cutters●Compatible inserts; XO..06…●Turbo 06 - R217.69−06 One meter specification
