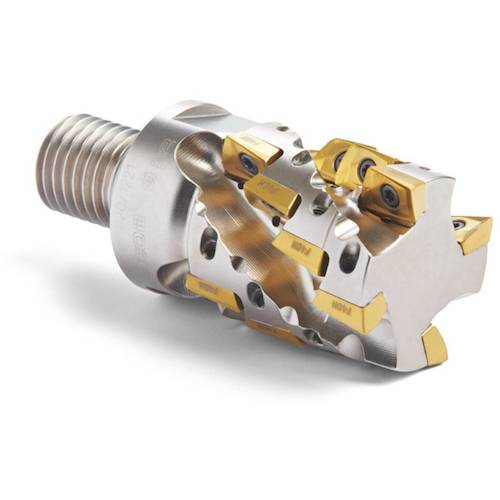

Seco Milling Turbo Mill Cutter R217.69-1632.RE-022-12.3AN 1 piece

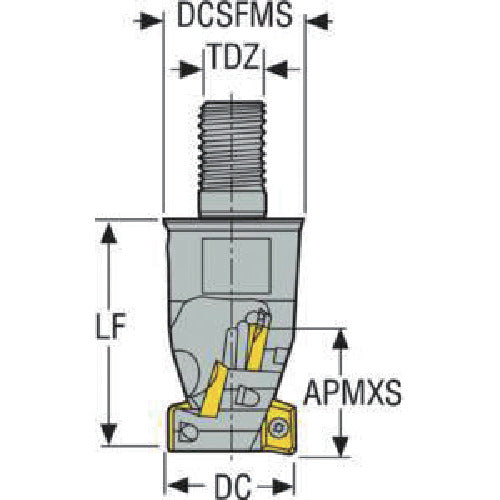

Catalog number: R217.69-1632.RE-022-12.3AN Features: ●This is SECO's representative shoulder cutter turbo mill. ●The highly versatile turbo mill is suitable for most roughing, semi-finishing and finishing processes, achieving long tool life and high precision due to its optimized properties of reducing heat generation and cutting force. ●This shoulder cutter has two corners and can also be used for 3D machining. There are a wide variety of combinations of nose radius settings, cutting edge treatments and material types. ●Seco Tools' lineup of high-performance turbo helical cutters has improved high feed rates, cutting depths and chip removal rates for contouring and profiling applications. ●These cutters offer the first choice for mixed production, in all workpiece materials Specifications: ●APMXS(mm):22.5 ●DC(mm):32.0 ●DCB(mm):- ●DCSFMS(mm):30.0 ●LF(mm):40.0 ●Insert:XO.X12..* ●KAPRS°:90 ●RPMX:18400 ●TDZ:M16 ●ZEFP:3 ●ZNP:6 ●Mounting shape:CombiMaster ●SECO Turbo Mill Shoulder Cutter ●Compatible inserts: XO..12… ●Turbo 12 - R217/220.69−12 One meter specification
