Seco Milling Turbo Mill Cutter R217.69-1632.RE-10-5A 1 piece

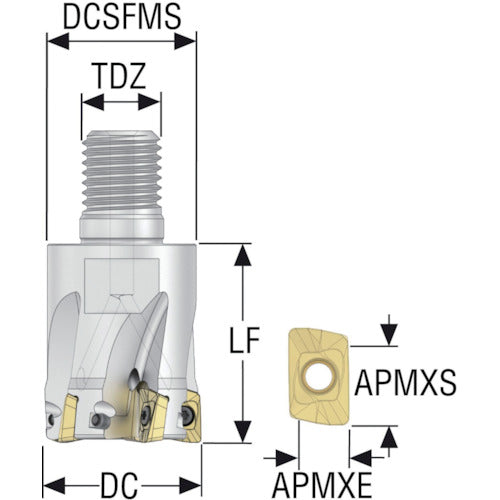

Catalog number: R217.69-1632.RE-10-5A Features: ●This is SECO's representative shoulder cutter, the Turbo Mill. ●This highly versatile Turbo Mill is suitable for most rough, semi-finishing and finishing processes, and its optimized characteristics of reducing heat generation and cutting force provide long tool life and high precision. ●This shoulder cutter has two corners and can also be used for 3D processing. There are a wide variety of combinations of nose R settings, cutting edge treatments and material types. ●The Turbo series can maximize the efficiency of square shoulder processing. ●This highly versatile cutter is suitable for most rough, semi-finishing and finishing processes, and its optimized characteristics of reducing cutting heat and cutting force provide long tool life and high precision. Specifications: ●APMXS(mm):9.0 ●DC(mm):32.0 ●DCB(mm):- ●DCSFMS(mm):30.0 ●LF(mm):40.0 ●Insert:XO.X10.. ●APMXE(mm):6.0 ●Cmax(mm):62.5 ●Cmin(mm):53.0 ●RMPX°:2.0 ●RPMX:20800 ●TDZ:M16 ●ZEFP:5 ●Mounting shape:CombiMaster ●SECO Turbo Mill Shoulder Cutter ●Compatible inserts: XO..10... ●Turbo 10 - R217/220.69-10 One meter specification
