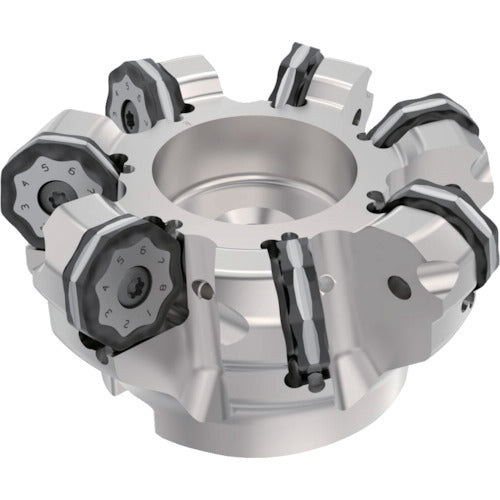

SECO Milling Double Octomill R220.48-09 Cutter R220.48-0063-09-06SA 1 piece

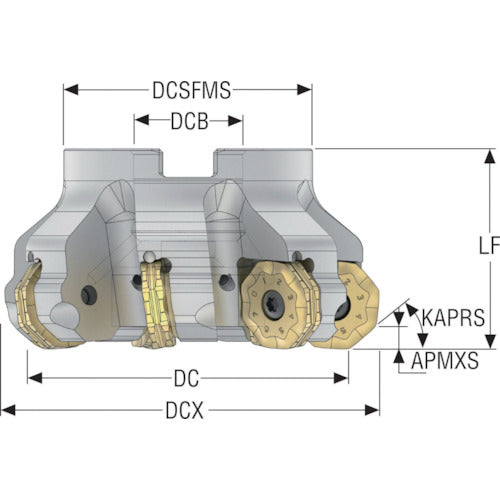

Catalog number: R220.48-0063-09-06SA Features: ●16 corner specification realizes low-cost, highly efficient machining. ●Double Octomill face mill cutter is a versatile, economical and highly productive tool that can be used for both rough machining and finishing. Specifications: ●APMXS(mm):6.0●C(mm):7.0●DBC1(mm):-●DC(mm):63.0●(mm):DCB22.0●DCSFMS(mm):47.0●DCX(mm):78.0●KWW(mm):10.4●LF(mm):40.0●Insert:ON.U0905●DCB(mm):22.0●KAPRS°:40.0●RPMX:4900●ZEFP:6●Mounting shape:Arbor●Compatible insert:ON.U0905●DC:63.0mm DCB:22.0mm DCSFMS:47.0mm●LF:40.0mm●APMXS:6.0mm●ZEFP(number of effective cutting edges):6●KAPR(cutting edge angle):40.0°●Shank type:Arbor●DCX: 78.0mm ● Double OctomillTM R217/220.48-09 One meter specification
