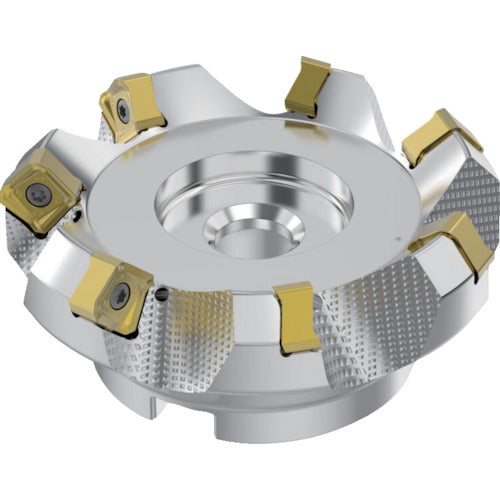

Seco Milling Double Quattro Mill R220.54-14 R220.54-0100-14-7A 1 piece

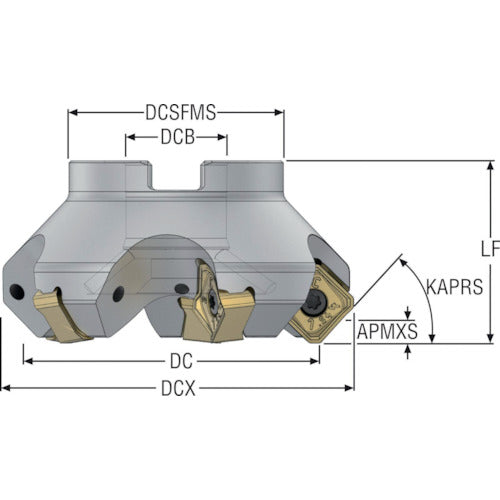

Catalogue number: R220.54-0100-14-7A Features: ●The body is designed using special steel material, making it a cutter with high rigidity and low resistance even at high cutting depths. ●The industry's largest cutting depth is achieved in a cost-effective manner using an insert with 8 cutting edges. ●The maximum cutting depth can be selected with two types of cutting angles. ●The Seco Tools Double Quattro MillTM Face Mill Cutter is suitable for roughing and semi-finishing, making the most of the milling capacity of the machine tool to increase productivity. ●The largest cutting depth is achieved in a cost-effective manner using an insert with 8 cutting edges. Specifications: ●Outer diameter (mm): 100.0 ●Thickness (mm): 50.0 ●Number of teeth (pieces): 7 ●Hole diameter (mm): 32.0 ●APMXS (mm): 6.0 ●DC (mm): 100.0 ●DCB (mm): 32.0 ●DCSFMS (mm): 77.0 ●DCX (mm): 115.0 ●KAPRS (deg): 48.0 ●LF (mm): 50.0 ●Insert: SN.X1407AN ●KAPRS°: 48.0 ●RPMX: 6000 ●ZEFP: 7 ●Mounting shape: Arbor ●Compatible insert: SN.X1407A ●DC: 100.0mm DCB: 32.0mm DCSFMS: 77.0mm ●LF: 50.0mm ●APMXS: 6.0mm ●ZEFP (number of effective cutting edges): 7●KAPR(cutting edge angle): 48.0°●Shank type: Arbor●DCX: 115.0mm●R220.54−14 metric specification
