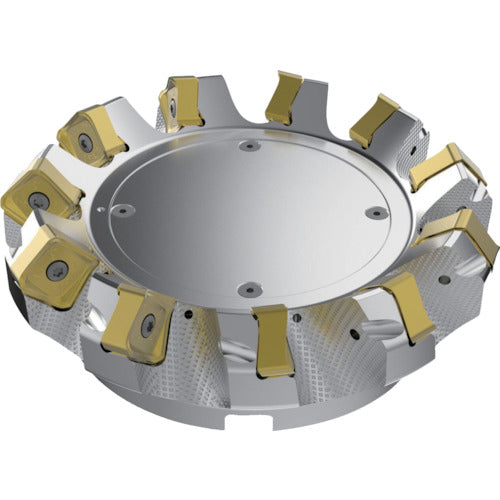

Seco Milling Double Quattro Mill R220.54-22 R220.54-8160-22-11A 1 piece

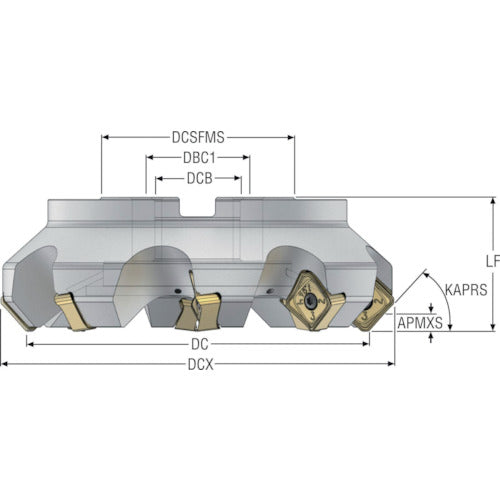

Catalog number: R220.54-8160-22-11A Features: ●The body is designed using special steel material, making it a cutter with high rigidity and low resistance even at high cutting depths. ●The industry's largest cutting depth is achieved in a cost-effective manner using an insert with 8 cutting edges. ●The maximum cutting depth can be selected with two types of cutting angles. ●The Seco Tools Double Quattro MillTM Face Mill Cutter is suitable for roughing and semi-finishing, making the most of the milling capabilities of machine tools to increase productivity. ●The largest cutting depth is achieved in a cost-effective manner using an insert with 8 cutting edges. Specifications: ●APMXS(mm):9.0●BD(mm):-●DBC1(mm):66.7●DC(mm):160.0●DCB(mm):40.0●DCSFMS(mm):90.0●DCX(mm):184.0●KAPRS(deg):48.0●LF(mm):63.0●Insert:SNMX2209AN●KAPRS°:48.0●RPMX:3300●ZEFP:11●Mounting shape:Arbor●Compatible insert:SN.X209A●DC:160.0mm DCB:40.0mm DCSFMS:90.0mm●LF:63.0mm●APMXS:9.0mm●ZEFP(number of effective cutting edges):11●KAPR(cutting edge angle):48.0°●Shank type:Arbor●DCX: 184.0mm ● Double Quattro R220.54-22 One meter specification
