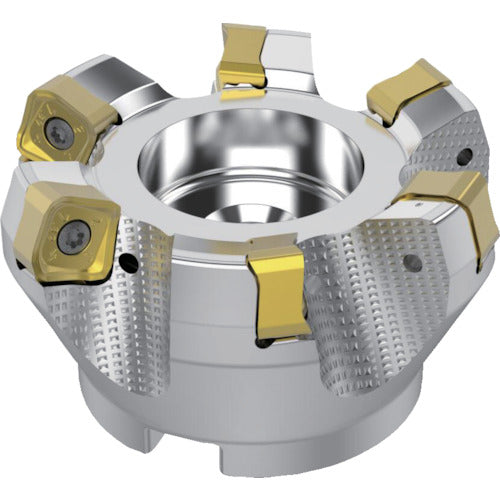

Seco Milling Double Quattro Mill R220.56-14 R220.56-0080-14-6A 1 piece

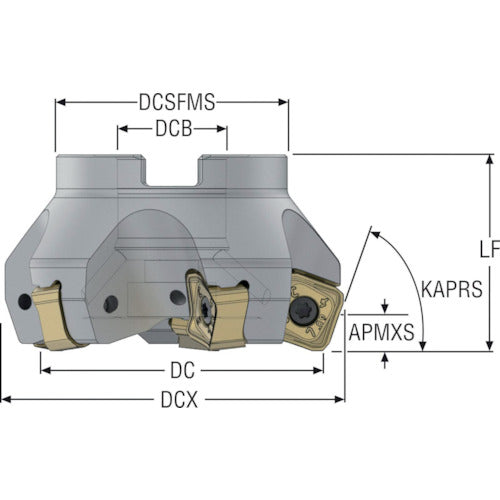

Catalogue number: R220.56-0080-14-6A Features: ●The body is designed using special steel material, making it a cutter with high rigidity and low resistance even at high cutting depths. ●The industry's largest cutting depth is achieved in a cost-effective manner using an insert with 8 cutting edges. ●The maximum cutting depth can be selected with two types of cutting angles. ●The Seco Tools Double Quattro MillTM Face Mill Cutter is suitable for roughing and semi-finishing, making the most of the milling capacity of the machine tool to increase productivity. ●The largest cutting depth is achieved in a cost-effective manner using an insert with 8 cutting edges. Specifications: ●APMXS(mm): 8.0●DC(mm): 80.0●DCB(mm): 27.0●DCSFMS(mm): 62.0●DCX(mm): 87.0●KAPRS(deg): 71.0●LF(mm): 50.0●Insert: SN.X1407ZN●KAPRS°: 71.0●RPMX: 6700●ZEFP: 6●Mounting shape: Arbor●Compatible insert: SN.X1407Z●DC: 80.0mm DCB: 27.0mm DCSFMS: 62.0mm●LF: 50.0mm●APMXS: 8.0mm●ZEFP(number of effective cutting edges): 6●KAPR(cutting edge angle): 71.0°●Shank type: Arbor●DCX: 87.0mm●Double Quattro R220.56-14 One meter specification
