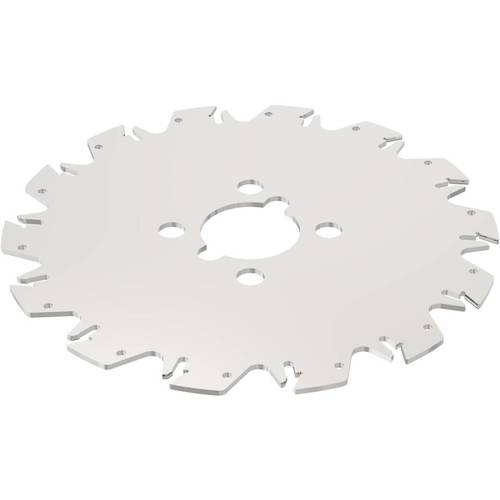

SECO Milling Cutter Narrow Width Side Cutter 335.10-03 335.10-200-03.40-14 1 pc

Catalogue number: 335.10-200-03.40-14 Features: ● Narrow width side cutter with extremely low cutting resistance. ● Complete range of insert shapes and materials for all applications. ● Easy-to-use and reliable side cutter system for narrow groove and cutting processing Specifications: ● CDX (mm): 59.5 ● CW (mm): 3.1 ● DC (mm): 200.0 ● DCB (mm): 40.0 ● THUB (mm): 2.4 ● Insert 150.10: -3N ● CWN (mm): 3.1 ● CWX (mm): 3.1 ● RPMX: 2200 ● ZEFP: 14 ● Mounting shape: Arbor hole ● SECO Side cutter for cutting R335.10 ● Cutting width setting standard; CW 2.25 - 4.1mm ● Cutter 335.10 - Insert 150.10 One meter specification_x000D_●Width 2.25/2.5/3.1 mm − Grooved − HSS body
