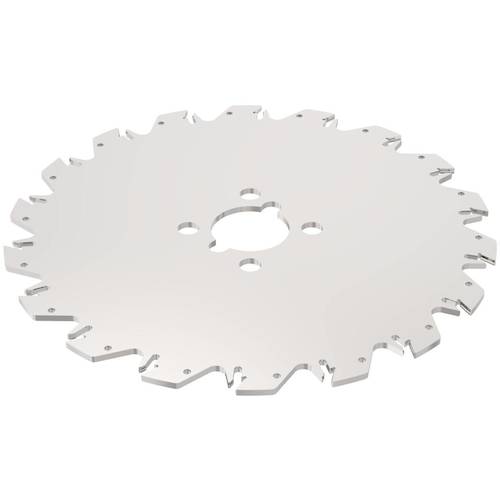

SECO Milling Cutter Narrow Width Side Cutter 335.10-04 335.10-250-04.40-18 1 pc

Catalogue number: 335.10-250-04.40-18 Features: ● Narrow width side cutter with extremely low cutting resistance. ● Complete range of insert shapes and materials for all applications. ● Easy-to-use and reliable side cutter system for narrow groove and cutting processing Specifications: ● CDX (mm): 84.5 ● CW (mm): 4.1 ● DC (mm): 250.0 ● DCB (mm): 40.0 ● THUB (mm): 3.4 ● Insert 150.10: -4N ● CWN (mm): 4.1 ● CWX (mm): 4.1 ● RPMX: 2000 ● ZEFP: 18 ● ZNP: 18 ● Mounting shape: Arbor hole ● SECO Side cutter for cutting R335.10 ● Cutting width setting standard; CW 2.25 - 4.1mm ● Width 4.1 mm - Groove processing - HSS body _x000D_●Cutter 335.10 - Insert 150.10 One meter specification
