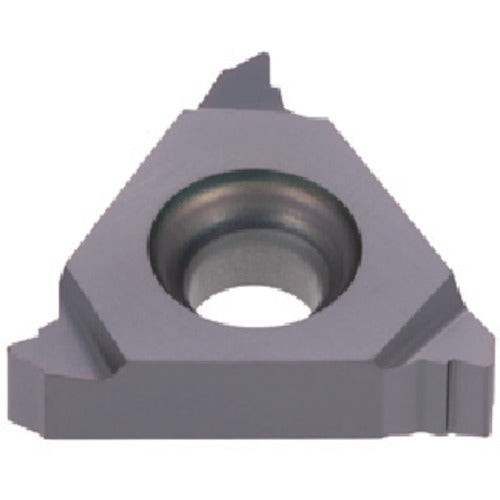

Tungaloy Tang Thread External Unified Thread Insert ER-UN AH725 16ER18UN 5 pieces

Catalog number: 16ER18UN Features: ● Unified thread insert for external diameter. Applications: ● For thread cutting. Specifications: ● Suitable workpiece materials: steel, stainless steel, cast iron, hard-to-cut materials ● Corner radius (mm): 0.18 ● Thread cutting insert size: 16 ● Inscribed circle diameter (mm): 9.525 ● X-direction cutting edge position (mm): 0.90 ● Y-direction cutting edge position (mm): 0.7 ● Insert size (mm): 16 ● Number of teeth: 18 ● Direction: Right ● Unified thread for external diameter ● With scraping edge ● General-purpose PVD coating material type Material/Finish: ● Carbide
