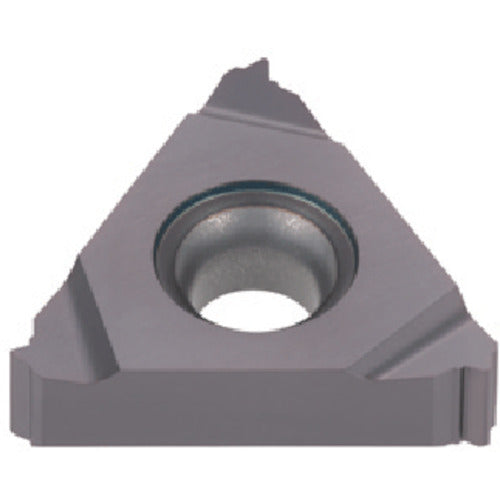

Tungaloy Tang Thread External Unified Thread Insert ER-UN AH725 16ER18UNJ 5 pieces

Catalog number: 16ER18UNJ Features: ● Unified thread insert for external diameter. Applications: ● For thread cutting. Specifications: ● Compatible holders: CER/LB-S/CER/L.BC-SER/LC-CER/L.JS-SER/L.JSE2R-F16-CHP.JSE2R-X16-CHP.SER-X-CHP-MC.C-CEL-ERN-BC-CEL-ERB-CHP ● Compatible workpiece materials: steel, stainless steel, cast iron ● Corner radius (mm): 0.24 ● Thread cutting insert size: 16 ● Inscribed circle diameter (mm): 9.525 ● X-direction cutting edge position (mm): 0.9 ● Y-direction cutting edge position (mm): 0.7 ● Number of teeth: 18 ● Insert size (mm): 16 ● Direction: Right ● 3-corner specification with scraping edge ● Surface treatment: PVD coating ● General-purpose PVD coating material type Material/Finish: ● Carbide
