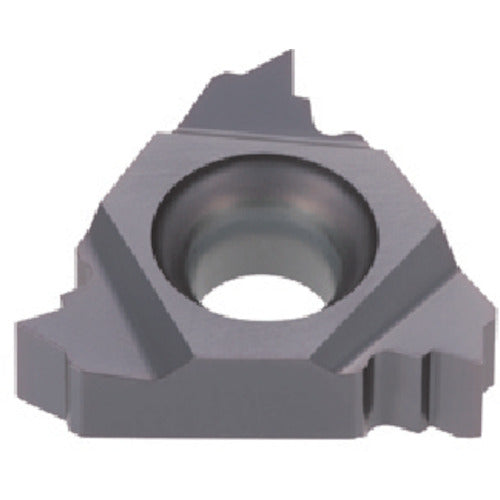

Tungaloy Tang Thread External NPT Thread Insert ER-NPT AH725 16ER18NPT 5 pieces

Catalog number: 16ER18NPT Features: ● External NPT thread insert. Applications: ● For thread cutting. Specifications: ● Suitable work material: Steel, stainless steel, cast iron, hard-to-cut materials ● Corner radius (mm): 0.03 ● Thread cutting insert size: 16 ● Number of teeth: 18.0 ● Direction: R ● Inscribed circle diameter (mm): 9.525 ● X-direction blade position (mm): 0.9 ● Y-direction blade position (mm): 0.7 ● External NPT thread ● With scraping blade Material/Finish: ● General-purpose PVD coating material type
