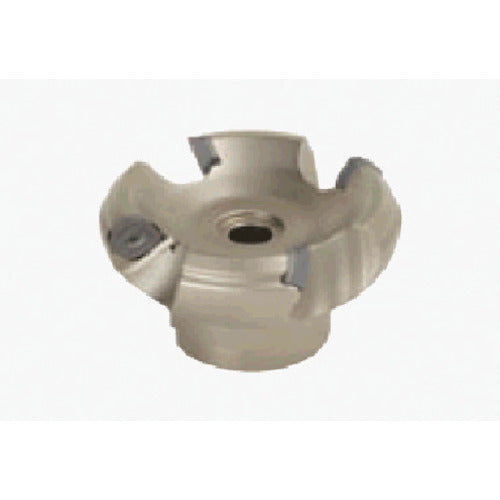

Tungaloy Tang Mill Face Milling Cutter TAW13 TAW13R160M50.8-10 1 piece

Catalog number: TAW13R160M50.8-10 Features: ●Screw-type front milling cutter. Applications: ●For flat surface processing. Specifications: ●Number of teeth CICT (pieces): 10 ●Number of teeth (pieces): 10 ●Maximum cutting depth (mm): 4.00 ●Maximum cutting depth_2 (mm): 2.50 ●Maximum cutting depth_3 (mm): 5.00 ●Maximum cutting depth_4 (mm): 2.00 ●Machining diameter (mm): 160.00 ●Maximum machining diameter (mm): 174.00 ●Machine side mounting diameter (mm): 50.800 ●Mounting hole depth (mm): 40.000 ●Contact diameter (mm): 100.00 ●Key groove width (mm): 19.00 ●Key groove depth (mm): 11.00 ●Reference length (mm): 63.00 ●Cutting angle (°): 45.0 ●Cutting Approach angle 2 (°): 45.0● Approach angle 3 (°): 45.0● Approach angle 4 (°): 30.0● Weight (kg): 4.4● Master insert model number: SWMT13T3AFPR-MJ● Master insert model number 2: SWMT13T3AFER-ML● Master insert model number 3: SWMW13T3AFTR● Master insert model number 4: SWMT13T3AFPR-HJ● Number in the diagram: 1● TungMill series● Screw-fasten type face milling cutter● Approach angle: 45°● Uses square positive SWMT/SWGT13 type insert Note:● The maximum depth of cut varies depending on the type of insert.
