Tungaloy External TAC Bit MDJNR2525M15 1 piece

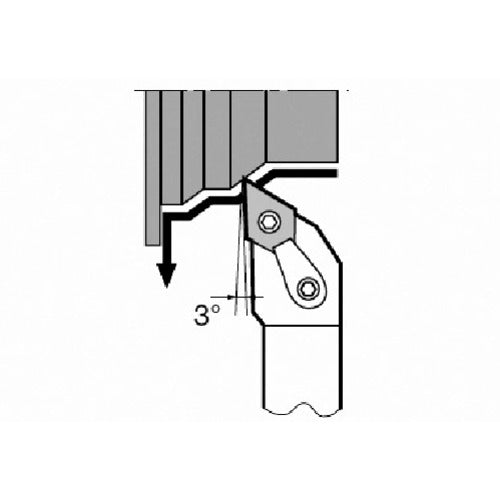

Catalogue number: MDJNR2525M15 Specifications: ●Direction: R ●Shank height (mm): 25.0 ●Shank width (mm): 25.0 ●Reference length (mm): 150.00 ●Head length (mm): 38.0 ●Reference height (mm): 25.0 ●Reference width (mm): 32.00 ●Corner radius (mm): 0.8 ●M series for external diameter machining ●Multi-clamp tool ●Approach angle 93° ●Insert used: negative 55° rhombus Note: ●When using an insert without a hole, optional parts (shim screw and breaker piece) are required.
