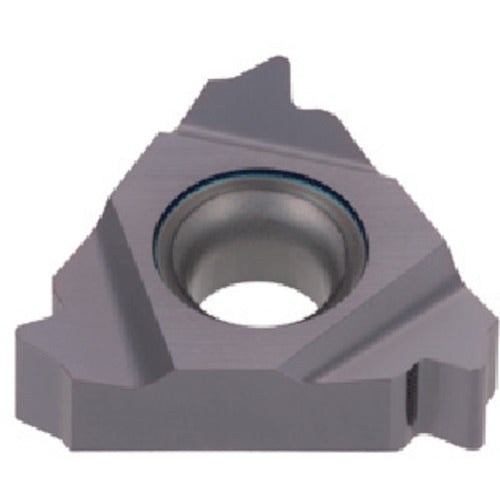

Tungaloy Turning Threading Insert PVD Coating AH725 16ER8RAPI 5 Pieces

Catalog number: 16ER8RAPI Features: ●A material with an excellent balance of wear resistance and chipping resistance. ●Ideal for general-purpose machining of steel and stainless steel. Applications: ●Workpiece: Steel, stainless steel, cast iron, hard-to-cut materials. Specifications: ●Compatible workpiece: Steel, stainless steel, cast iron, hard-to-cut materials ●Corner radius (mm): 0.43 ●Thread cutting insert size: 16 ●Inscribed circle diameter (mm): 9.525 ●X-direction cutting edge position (mm): 1.60 ●Y-direction cutting edge position (mm): 1.2 ●Number of teeth: 8 ●Direction: Right ●Insert size (mm): 16 ●TungThread series ●API round thread for external diameter ●General-purpose PVD coating material Material/Finish: ●Carbide
